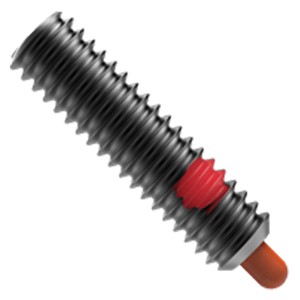

Self-contained plunger-and-spring device available in many sizes and forces. This standard-length, threaded type has a long stroke and long plunger bearing length for smooth operation. The version shown here has a steel body, and a Delrin plunger nose to prevent marring. Available in thread sizes from #8-32 to 5/8-11 (M6 to M12 in metric), each with a choice of light or heavy spring force. Made in USA. Install and/or adjust from either end. When using the slot at the plunger end to install, use a Plunger Wrench instead of a screwdriver to avoid over-compressing the spring (see Related Products below). A thread-locking element holds the unit securely in place after installation.

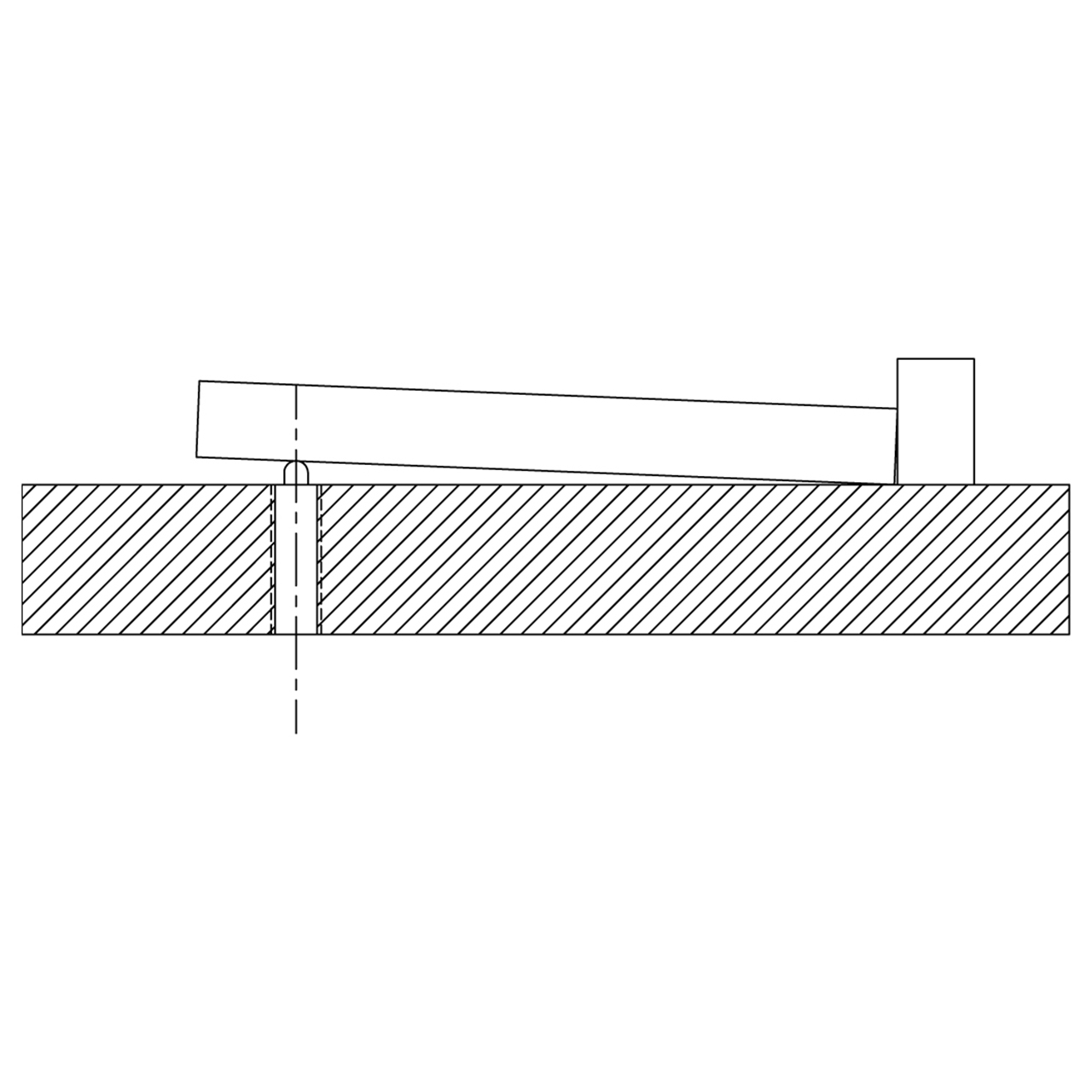

Spring plungers can be used to lift parts slightly after machining, for easier unloading.

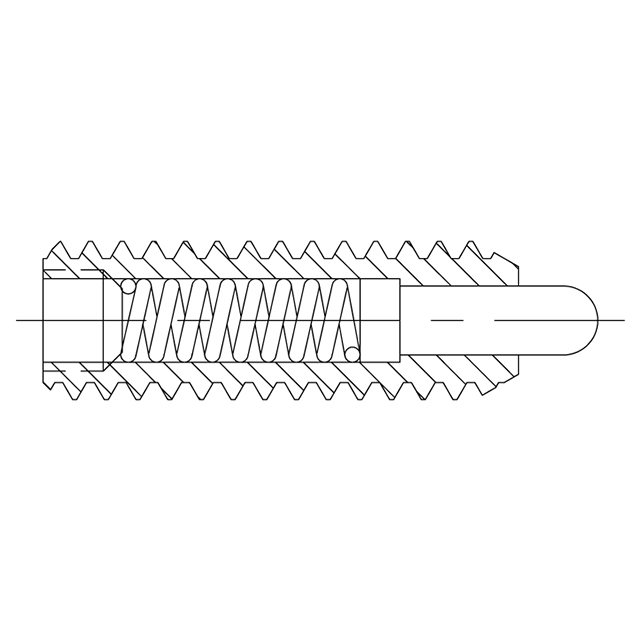

Nose Extended Nose Retracted
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Body | 1215 steel | - | black oxide finish (Metric sizes zinc plated clear chromate) | ✔ | ✔ |
| Plunger Nose | Brown Delrin 500 (heavy force) or white Delrin 500 (light force) | - | - | ✔ | ✔ |
| Spring | Music Wire | - | - | ✔ | ✔ |

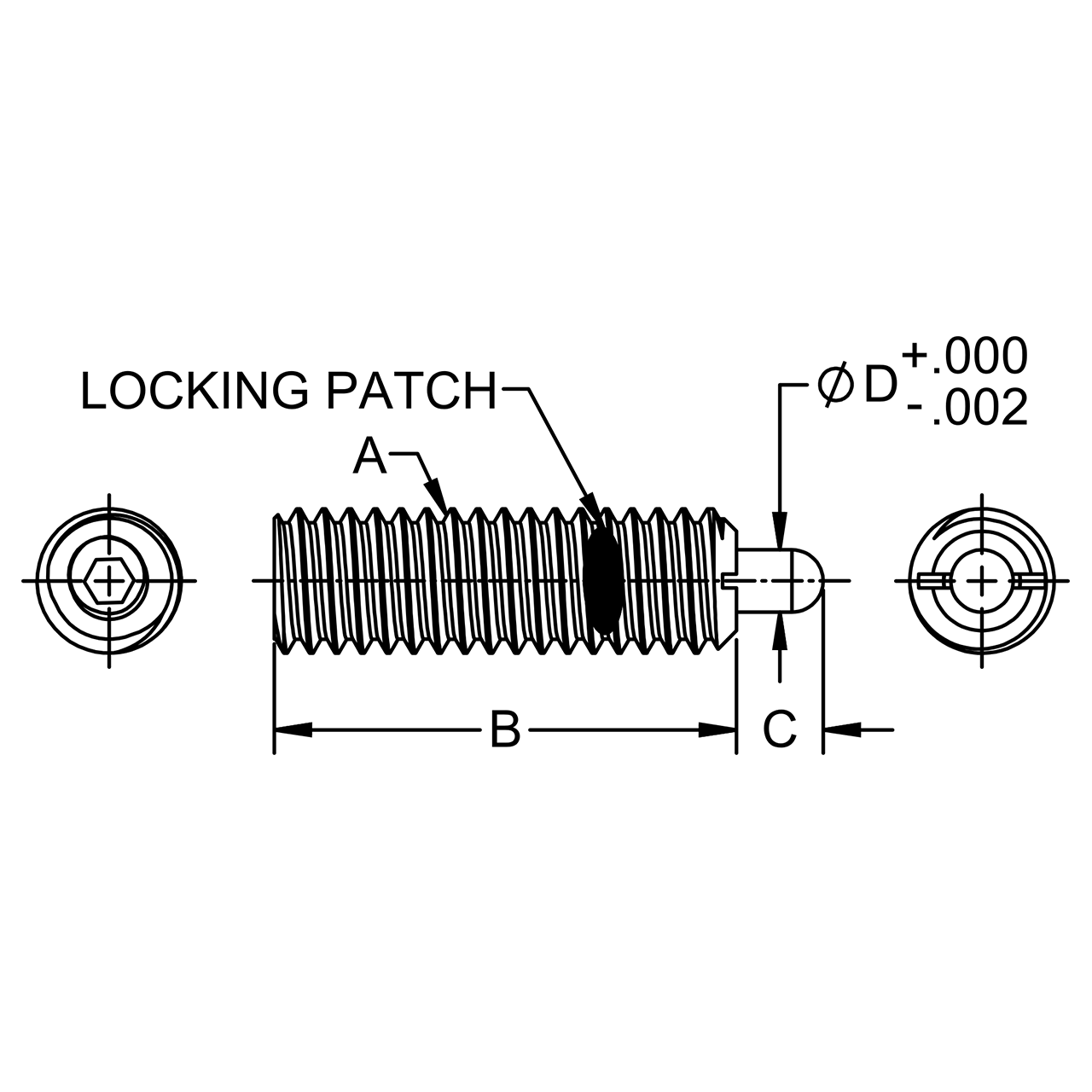

| Part Number | A THREAD | INITIAL END FORCE (lbs) | FINAL END FORCE (lbs) | B | C | D DIA |
| CL-60-SPN-2 | 3/8-16 | 2.8 | 7.2 | 1-1/8 | 3/16 | .186 |
