Toggle Clamps

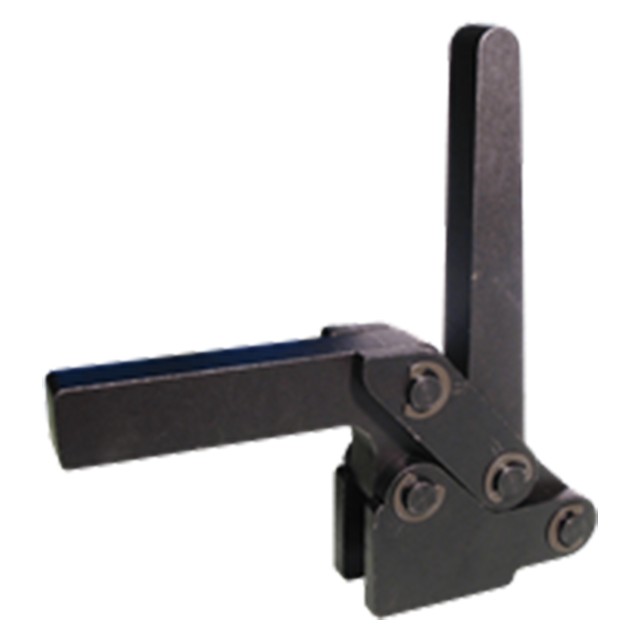

Solid Arm, Straight Base
Heavy-duty toggle clamps with a machined steel handle and clamping arm. Simple, easy-opening toggle clamps with extra arm height. Arm opens 83° while handle moves 83° – ideal when wide opening is not desirable. Hardened bushings at all pivot points. Solid arm can be tapped to accept a spindle, or otherwise modified. 5000 lbs. holding capacity.

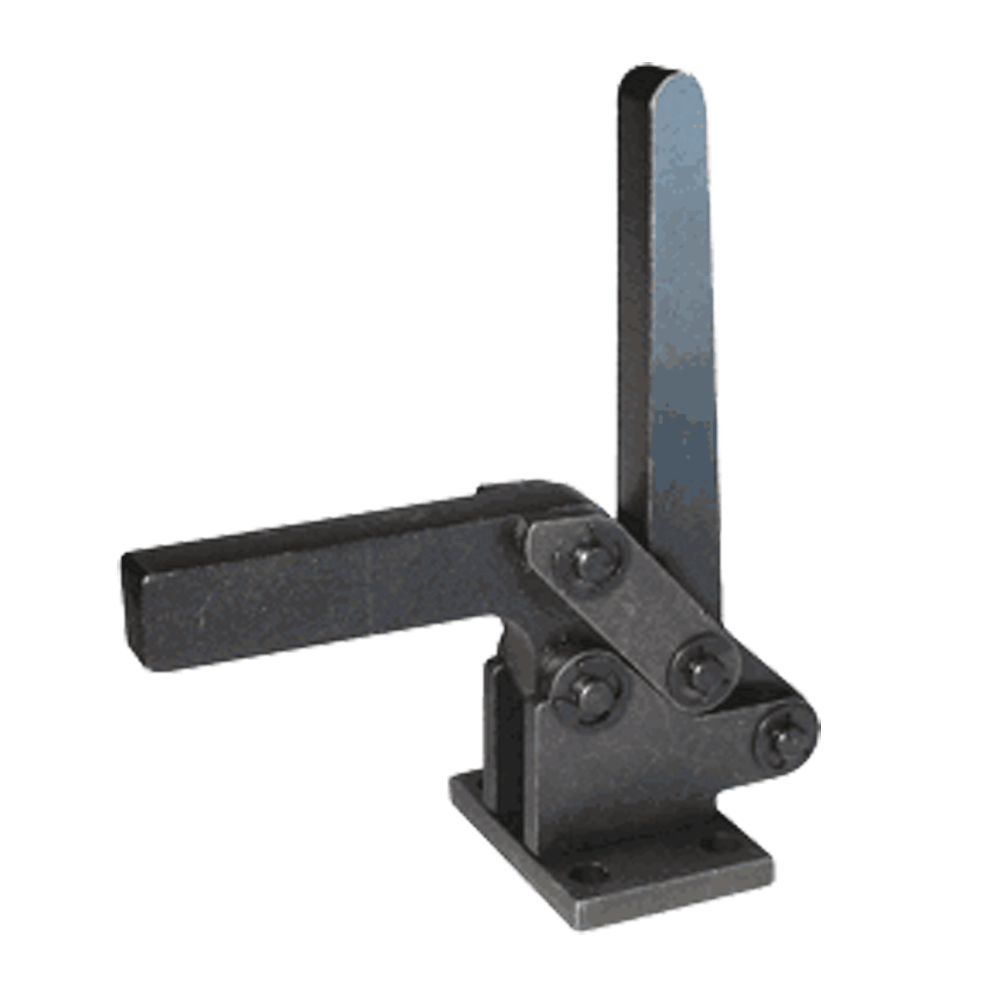

Optional Flanged Base
Solid Arm, Flanged Base

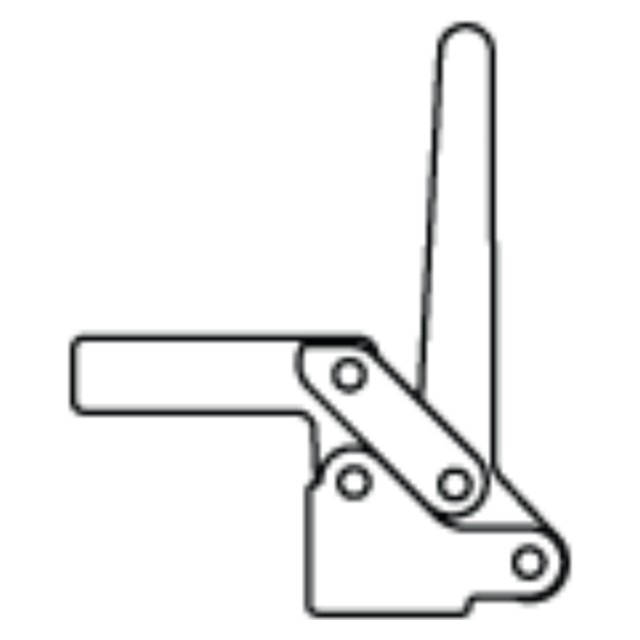

Clamping Action
Clamped Position
Open Position
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Mild Steel | - | Black Oxide | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Solid Arm, Attached Flanged Base | 5000lbs. | 5.0lbs. |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Holding Capacity:
5000 lbs.
Ships:
From Manufacturer
