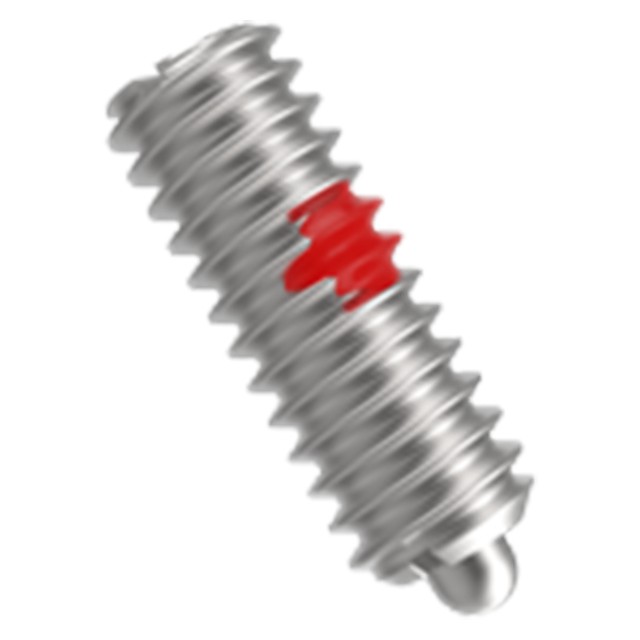

Short Spring Plungers-Stainless Steel
Short Spring Plungers have a shorter overall length, and shorter stroke, than the standard Spring Plungers. The version has a stainless steel body and plunger nose for extra corrosion resistance. Made in USA.
Install and/or adjust from either end. When using the slot at the plunger end to install, use a Plunger Wrench instead of a screwdriver to avoid over-compressing the spring. A thread-locking element holds the unit securely in place after installation.
Internal View
Nose Extended
Nose Retracted
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body and Plunger Nose | 300-Series Stainless Steel | - | - | Yes | Yes |
| Spring | 302 Stainless | - | - | Yes | Yes |
Parts Specification
| A Thread | Initial End Force (lbs) | Final End Force (lbs) | B (inch) | C±.010 (inch) | D Diameter (inch) |
| #8-32 | 1.5 lbs. | 4.75 lbs. | 7/16" | 0.052" | 0.070" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread:
#8-32
