Gripper Contact Bolts
Fully threaded contact bolt with a carbide-tipped gripper head. Can be used as an adjustable support, or as a contact bolt in a clamp. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Steel | Carburized-Hardened | Black Oxide, with brazed carbide gripper | Yes | Yes |
Parts Specification

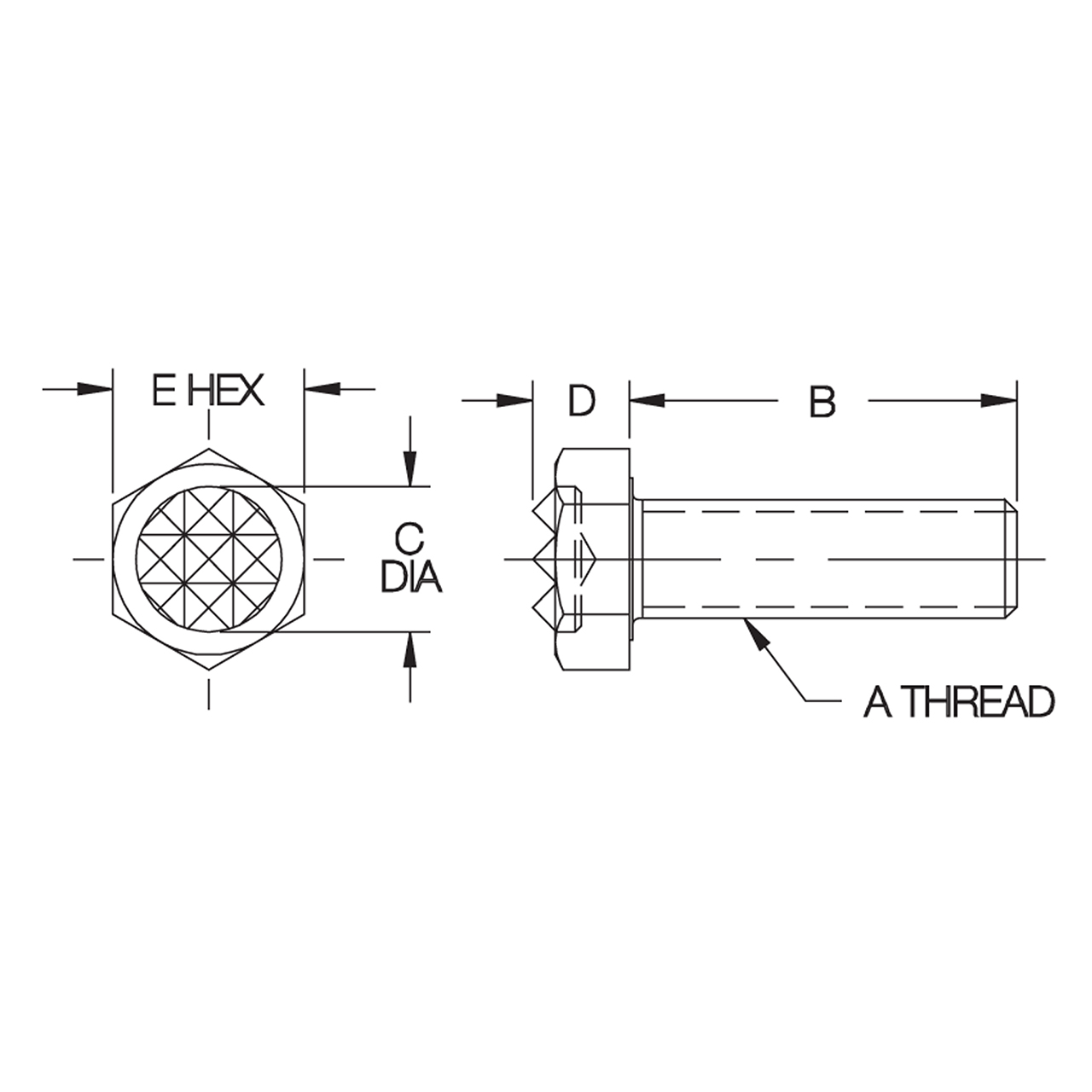

| A Thread (Inch) | B (Inch) | C Diameter (Inch) | D (Inch) | E (Inch) | Serrations | Serration Dimensions |
| 3/8-16" | 1-1/2" | 1/2" | 9/32" | 9/16" | FINE | 0.125x90° |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
