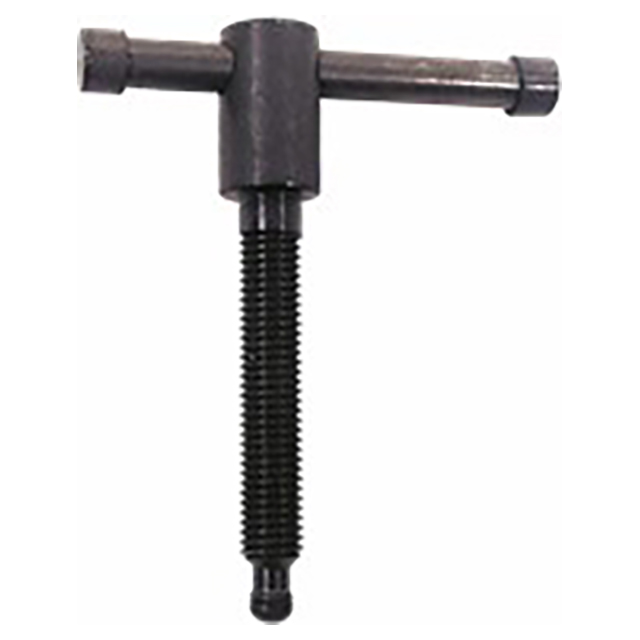

Carr Lane CL-630-BHSA | 3/8-16" Thread x 3" Length Bar-Handle Screw Clamp

Bar-Handle Screw Clamp

Heavy-duty screw clamp with a sliding bar handle for excellent leverage. The sliding bar can be moved to any position for convenient tightening, and is held in place by light spring force. These screw clamps accept all standard types of swivel feet. Made in USA.

Application Information

The sliding bar can be positioned for convenient clamping in tight spaces

Swivel Foot

Choice of four foot types. Bar-Handle Screw Clamps use the patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use. Delrin feet are optional for types A and B.

Material

Parts Specification
