Carr Lane CL-6321-10-10-B | 10mm Diameter Black Oxide Coated Round Locating Pin

Diamond Locating Pins, DIN 6321, Type B

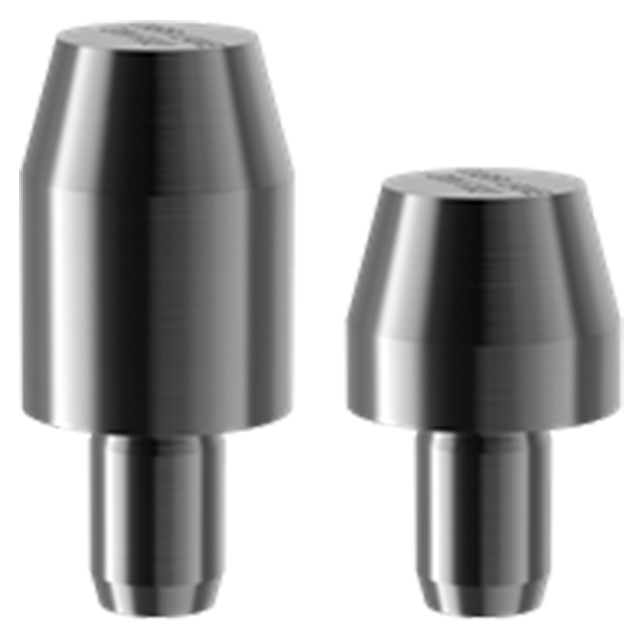

Round Locating Pins per DIN 6321 Type B have a ground head diameter for use as a hole locator or for side location. One Round Locating Pin and one Diamond Locating Pin are often used together to locate from two machined holes in a workpiece, or to align two pieces of a fixture, without binding. Round Locating Pins are also extremely useful as side locators. Head and shank diameters are concentric to within .0005" TIR. Made in USA.

Application Information

In this application, a Round Locating Pin (Type B, tall version) is used together with a Diamond Locating Pin (Type C, short version) to locate from two holes in a workpiece. Using a taller round pin allows smoother loading because that pin's hole can be fully engaged first, making it easier to engage the second hole.

In this application, a Round Locating Pin (Type B) is used as a side locator, together with a Round Locating Pad (Type A) used as a rest pad.

Material

Parts Specification
