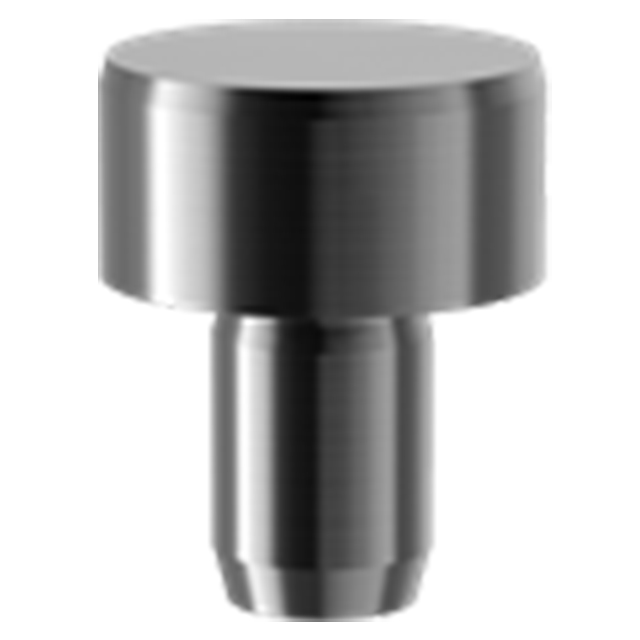

Round Locating Pads, DIN 6321, Type A
Round Locating Pads per DIN 6321 Type A are dual-purpose precision locators, with a ground top surface for use as a rest pad, and a ground head diameter for use as a locating pin. These pads are especially useful as locating pins for side location of thin workpieces. Made in USA.
Application Information
In this application, three Round Locating Pads (Type A) are used as side locators for a thin workpiece.
Material
| Material | Heat Treat | Finish |
| A2 Tool Steel | Heat Treated | Black Oxide |
Parts Specification
| A Diameter (mm) G6 | B (mm) H9 | C (mm) | D (mm) N6 |
| 25mm | 10mm | 18mm | 12mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
