Carr Lane CL-666-PFK-PACKOF2 | 3/8-16" Thread x 2-3/8" Diameter Fluted Knob - Tapped (Phenolic)

$8.52
Brand:
Carr Lane
Thread Size:
3/8-16"
Diameter (Inch):
2-3/8"
Diameter (Decimal Inch):
2.3800"
Diameter (mm):
60.33mm
SKU:
50035714
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Carr Lane CL-666-PFK-PACKOF2 | 3/8-16" Thread x 2-3/8" Diameter Fluted Knob - Tapped (Phenolic)

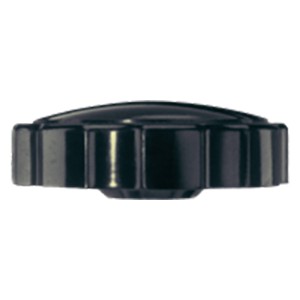

Product Information

Large easy-grip phenolic knob that is excellent for either fine-adjustment or high-torque applications. Molded-in brass insert provides superior thread strength. Choice of two knob sizes, both with tapped-hole size 3/8-16. Non-standard thread sizes, reamed holes, or molded-in studs, are available in quantities of 500 and above. Made in USA.

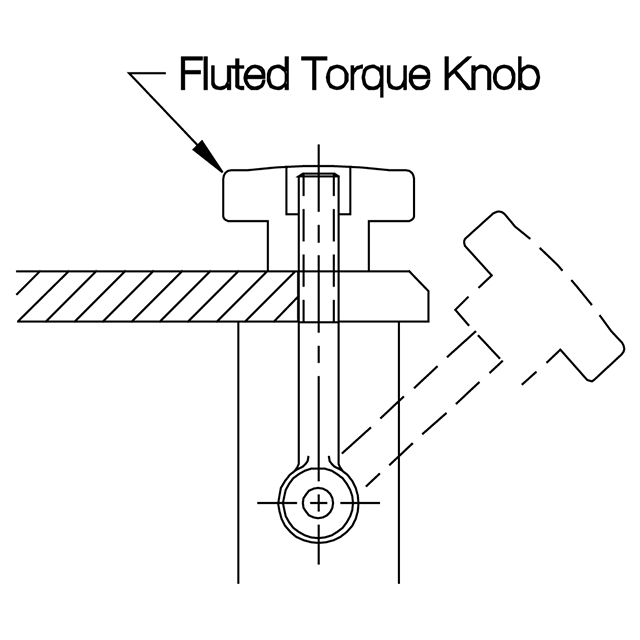

Application Information

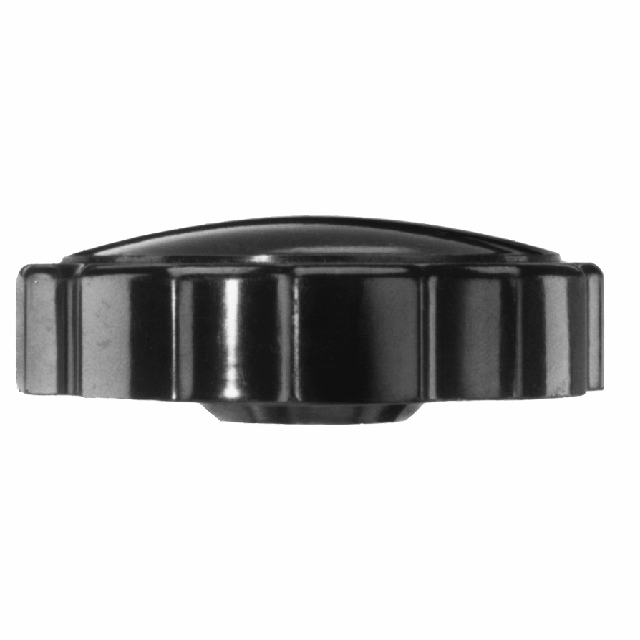

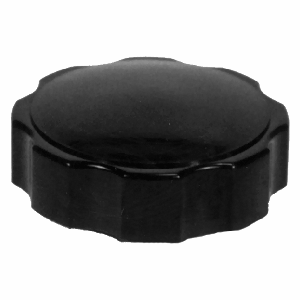

Available Sizes

3/8-16 3/8-16

Material

ITEMMATERIALHEAT TREATFINISHDFARSRoHS
Fluted Knobs – Tapped with Short Hub (Phenolic)Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals)-Molded-in Brass Insert✔✔

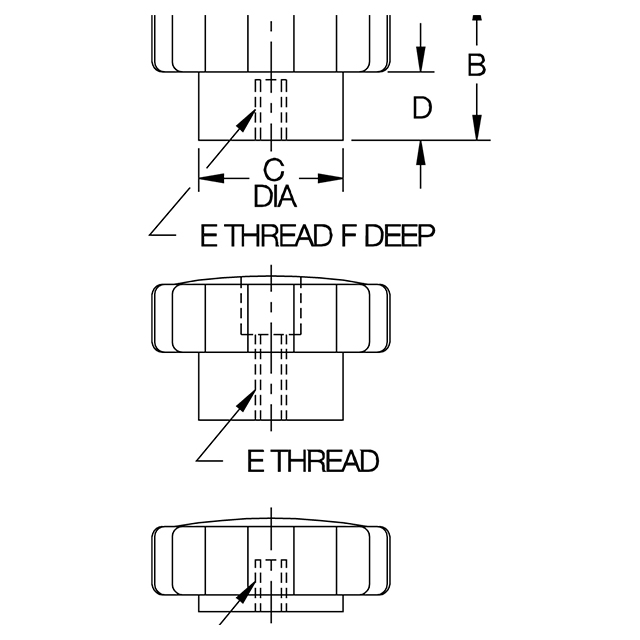

Parts Specification

Part NumberA DIABC DIADE THREADF THREAD DEPTH
CL-666-PFK-PACKOF22-3/813/163/41/83/8-161/2

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
