Steel
Heavy-duty swivel foot pivots to contact sloped surfaces evenly. Large swivel ball provides high load capacity with a 18° total swivel angle. Made in USA.

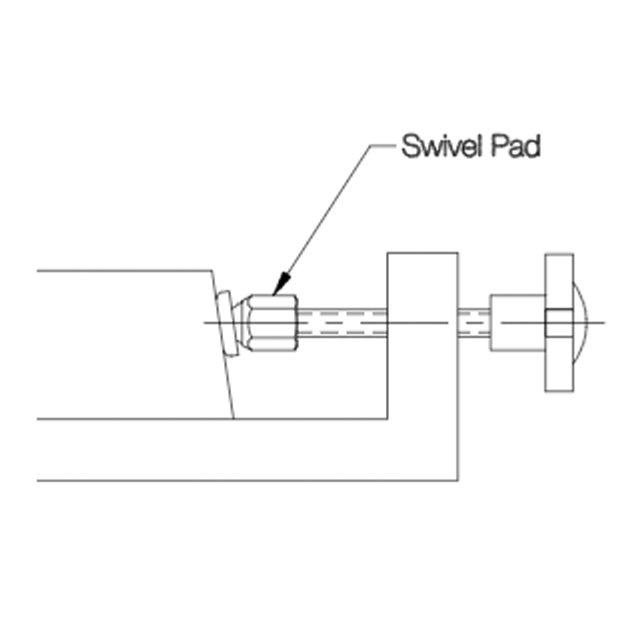

Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | Black Oxide | Yes | Yes |
| Steel Pad | 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Delrin pad | Aluminum | - | White Delrin 500 | Yes | Yes |

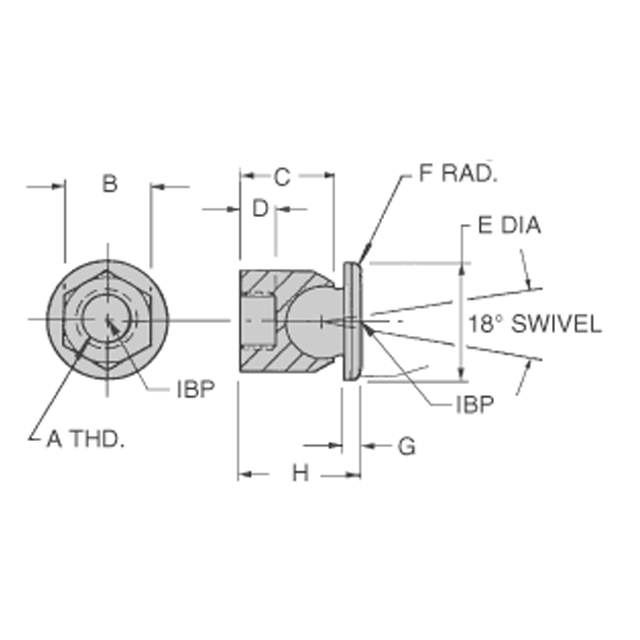

Parts Specification
| A Thread (Inch) | B (Inch) | C (Inch) | D (Inch) | E Diameter (Inch) | F (Inch) | G (Inch) | H (Inch) |
| 1"-8" | 1-3/8" | 1.50" | 0.35" | 1-5/8" | 0.09" | 0.20" | 1.83" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
