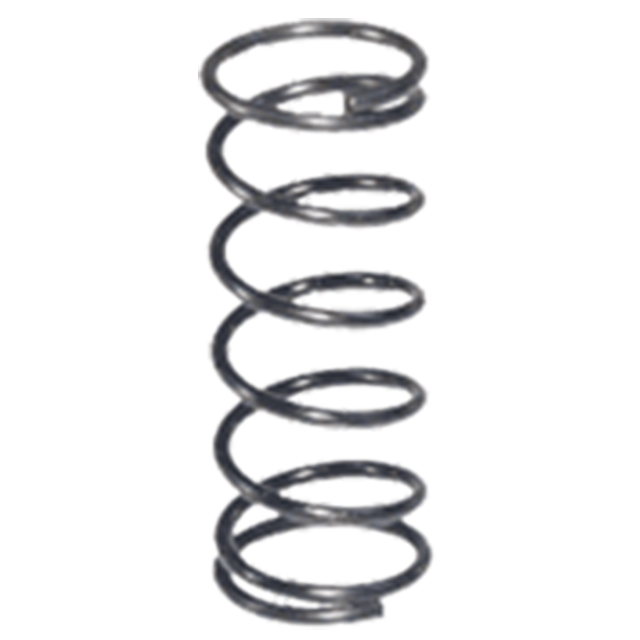

Clamp Springs
Sturdy spring that holds up a clamp strap for clear part loading.
Application Information
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Springs | Spring Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| Fits Stud Size | A Diameter | B | C Diameter | Number of Coils |
| 3/8-16 or M10 | 7/16 | 1-9/16 | 0.062 | 8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
7/16"
Diameter (Decimal Inch):
0.4375"
Diameter (mm):
11.12mm
