Product Information

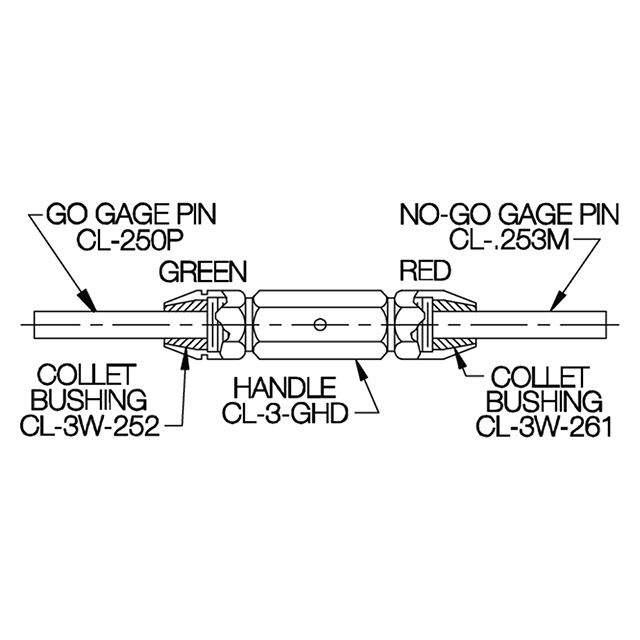

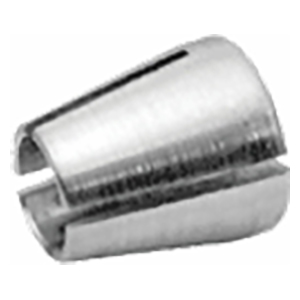

One Collet Bushing is required for each gage pin. Each bushing covers a range of several pin sizes. Collet Bushings firmly hold gage pins against rotational and lateral forces when the ends are tightened. Available in 73 sizes, to fit pins from .061 to 1.010" diameter.
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Collet Bushings | Aluminium or Brass | - | - | ✔ | ✔ |
Parts Specification
| Part Number | FITS PIN DIAMETERS | FITS SINGLE-END GAGE HANDLE "GO" (GREEN) | FITS DOUBLE-END GAGE HANDLE (GREEN & RED) |
| CL-7W-735-PACKOF2 | .720 to .735 | CL-7-GHS | CL-7-GHD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
18/25 - 61/83"""
Diameter (Decimal Inch):
0.7200 - 0.7350"""
Diameter (mm):
18.29mm - 18.67mm
