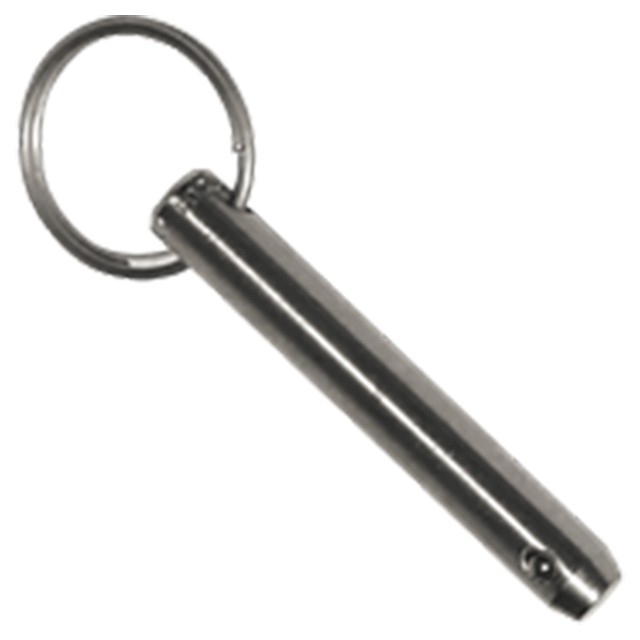

Carr Lane CL-8-EDP-1.50-C | 1/2" Diameter x 1.5" Grip Length Economy Detent Pin

Economy Detent Pins

Economical quick-release alignment pin with a solid steel shank and one spring-loaded locking ball. This type of Detent Pin has a ring instead of a solid shoulder, for applications where exact grip length is not important. Locking ball holds the pin in place by spring force (not positive locking like a Ball Lock Pin). Simply push the pin to insert, and pull to remove. Made in USA.

Technical Information

Locking ball holds the pin in place by spring force. Simply push the pin to insert, and pull to remove.

Optional Cable

To order pins with a standard cable assembly attached (Cable Assembly CL-82-KA-12.0-#2 cable size, 12" long, with a terminal at the free end for a #10 or M5 attachment screw), add "-C" to the part number. For an optional 10" nylon lanyard, add "-NL" to the part number.

Material

Shank > Mild Steel, Zinc Plated clear chromate. Ring > Steel spring wire, Zinc Plated clear chromate. Spring and balls > Steel. DFARS and RoHS compliant.0.

Parts Specification
