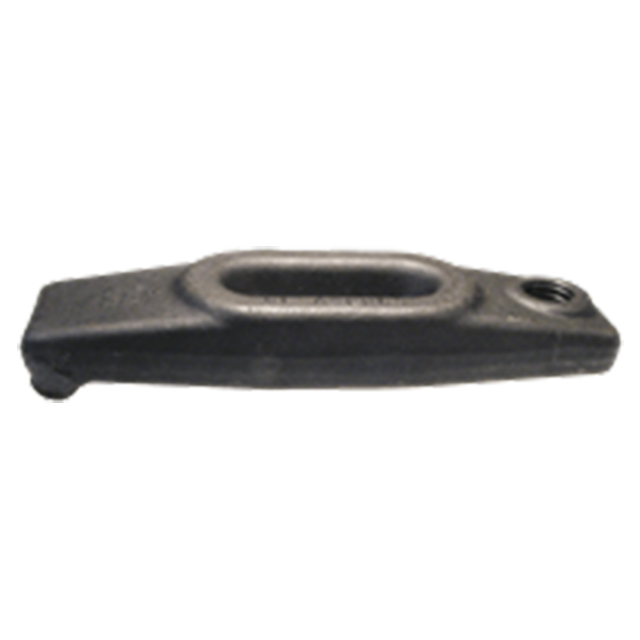

Forged Clamp Straps-Straight
High-strength Tapped-Heel Clamp Strap, available with a plain radius nose or locator nose. These clamp straps have a tapped heel that accepts an adjustable rear support, such as a Stud leveling Foot.
Optional Locator Nose
The locator-nose version is ideal for workpieces with machined sides. The nose's accurately machined locating notch ensures precise, repeatable clamp location with a small contact area for increased machining clearance.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Forged Steel, 70,000 psi yield strength | - | Black Oxide | Yes | Yes |
Parts Specification
| Stud Size | A | B | C | D | E | F | G | H | J | K |
| 3/4-10 | 8 | 2-1/8 | 1-1/2 | 3 | 2 | 11/16 | 13/16 | 1-1/8 | 3/4 | 1-1/4 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
