Leveling Feet

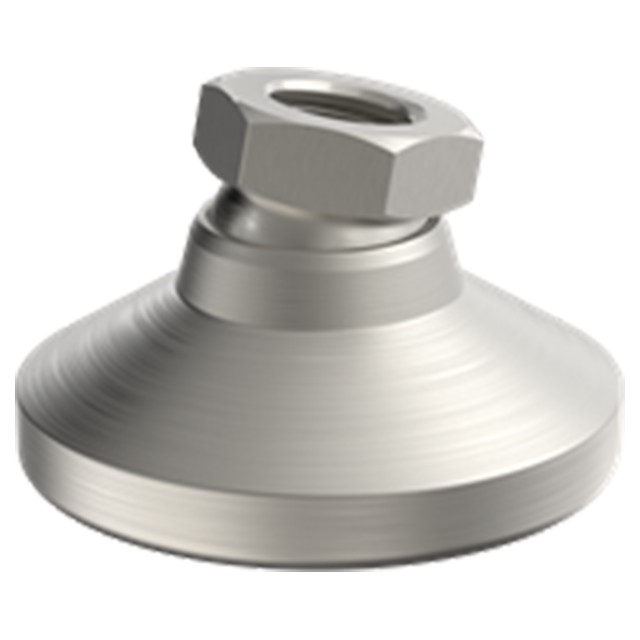

High-quality, heavy-duty leveling foot with a large-diameter pad. Large swivel ball provides high load capacity with a 20° total swivel angle. Made entirely of stainless steel for extra corrosion resistance. Made in USA.
Design Considerations & Safety Precautions
Rated load capacity represents safe static load with the standard-length stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Leveling feet are rated with the same stud length as Stud Leveling Feet (2" for most sizes). Load capacity will drop significantly with longer studs.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 300-Series Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Thread (Inch) | B (Inch) | C Diameter (Inch) | D (Inch) | E (Inch) | F (Inch) | Load Rating (lbs) |
| 1/2-13" | 3/4" | 1-7/8" | 1/4" | 1-1/8" | 1/2" | 4200 lbs |
