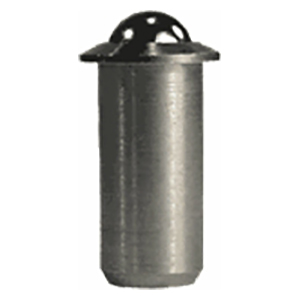

Carr Lane CL-8-PBPS-1 | 0.438" Diameter Press Fit Ball Plunger

Product Information

Simple, economical ball plunger ideal for installation in softer materials, such as aluminium, wood, or plastic. Use when a threaded hole would be impractical or when adjustment is not required. Sturdy shoulder provides a fixed seating position and positively resists detent force. Installation hole can be counterbored to recess the shoulder. The version shown here has a stainless steel body for extra corrosion resistance, and a 440C stainless steel ball. Available in six body diameters from 1/8" to 1/2", each with a choice of light or heavy spring force. Made in USA.

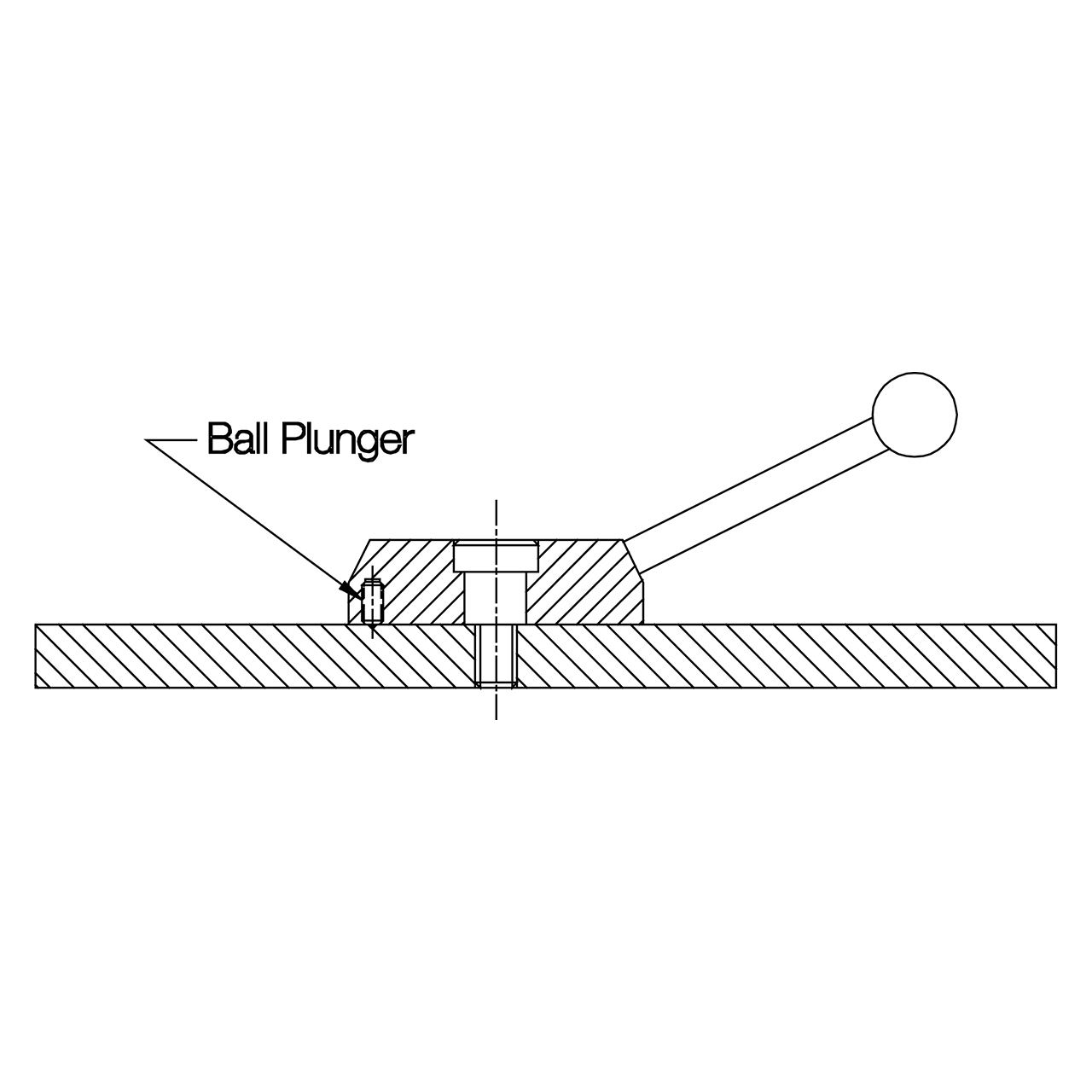

Application Information

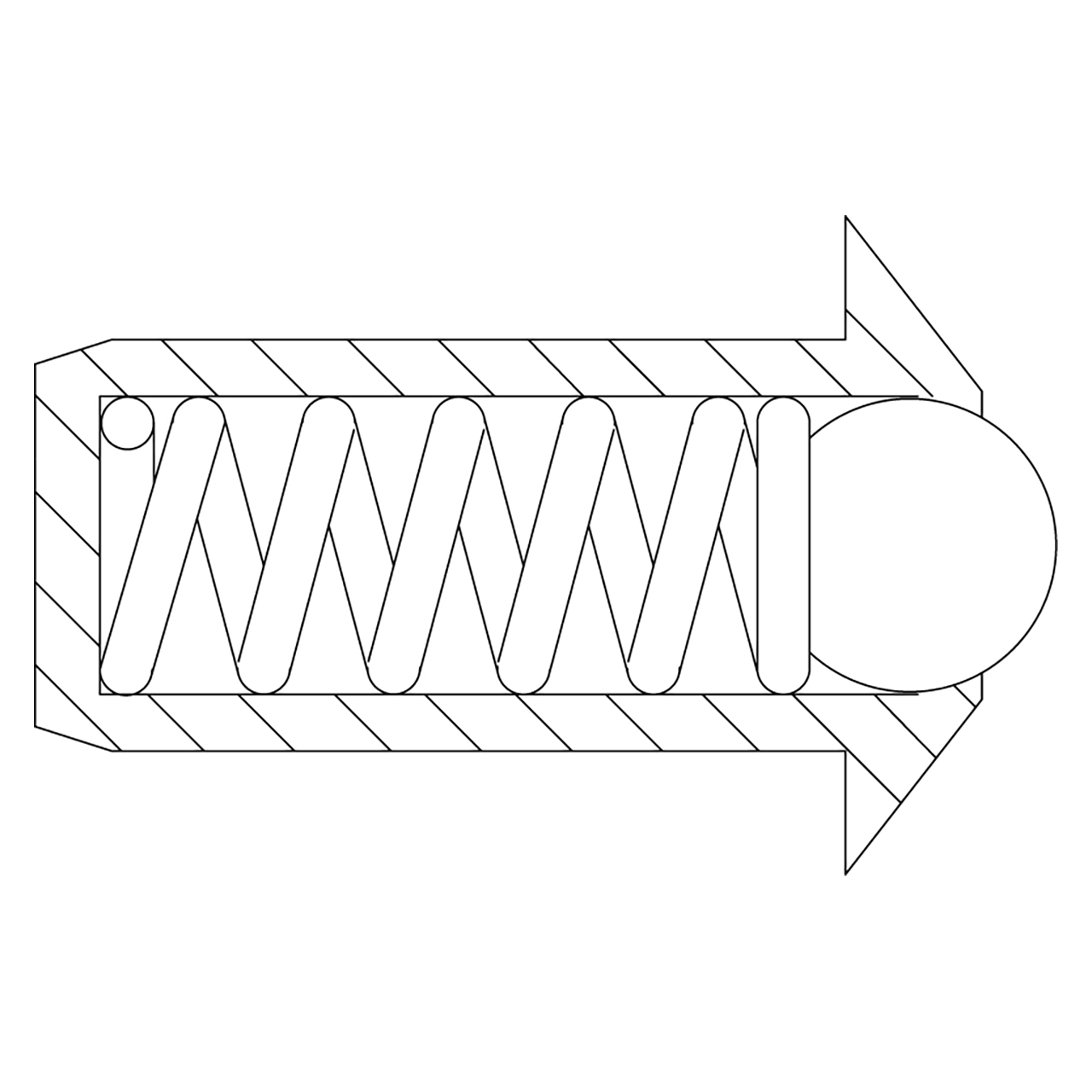

Internal View

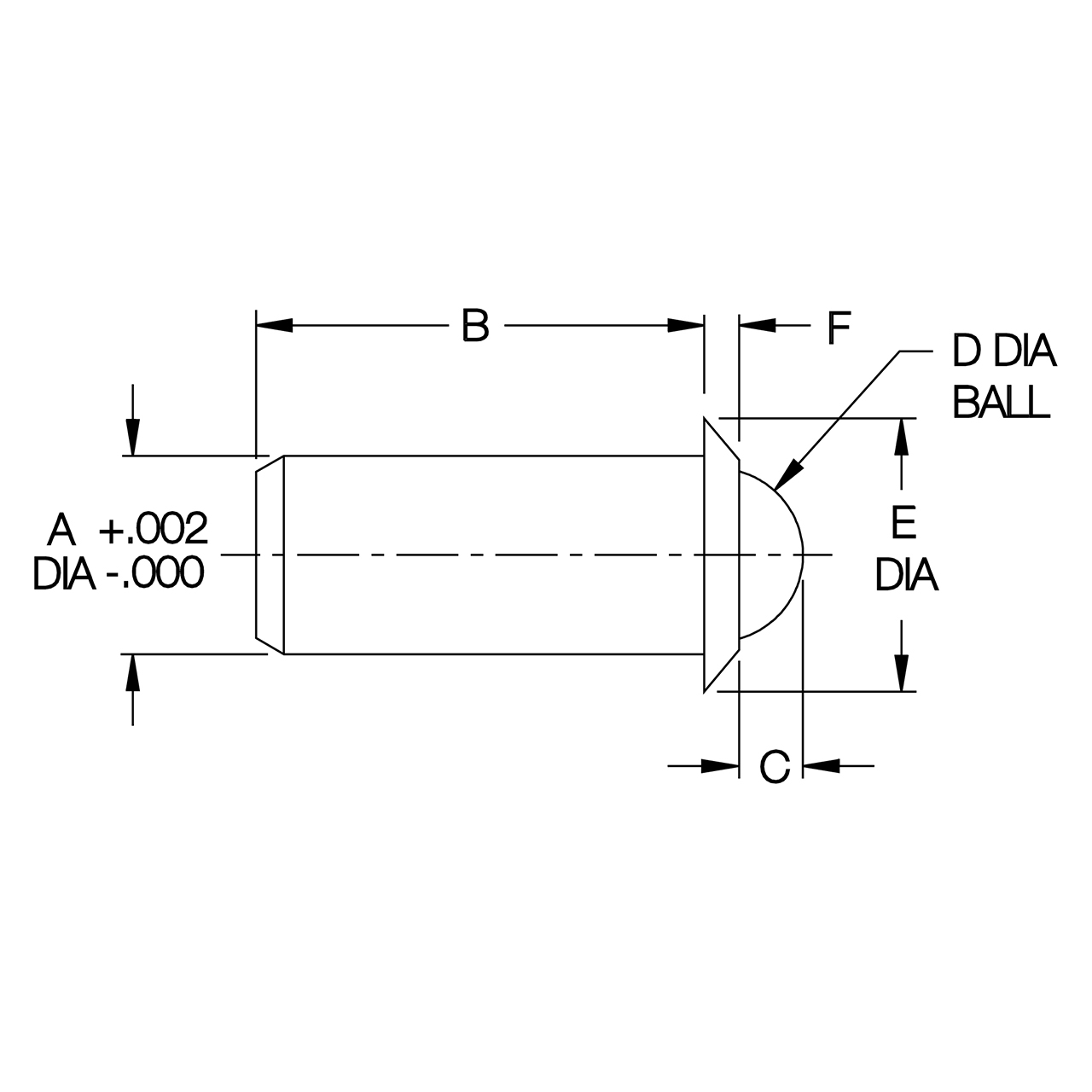

Material

Parts Specification
