Stud leveling Feet

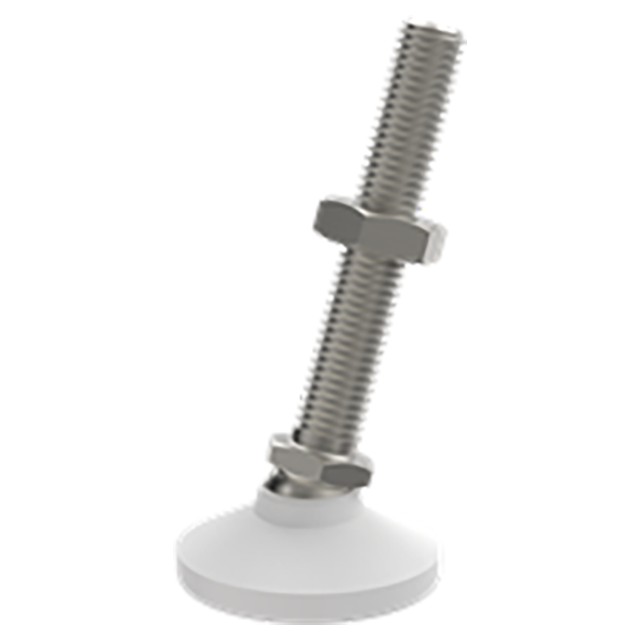

High-quality, heavy-duty leveling foot with a large-diameter pad and integral stud. Stud and swivel ball are one solid piece. Large stainless-steel swivel ball provides extra corrosion resistance with a 20° total swivel angle. The Delrin pad prevents marring, but has a lower load capacity than a stainless-steel pad. Made in USA.
Application Information
A Stud Leveling Foot can be used as a clamp rest for a Tapped-Heel Clamp Strap
Design Considerations & Safety Precautions
Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Load capacity will drop significantly with longer studs.
Material
| Item | Material | Heat Treat | Finish |
| Body | 300-Series Stainless Steel | - | - |
| Pad | White Delrin 500 | - | - |
Parts Specification
| A Thread | B (Inch) | C Diameter (Inch) | D (Inch) | E (Inch) | F (Inch) | Load Rating (lbs) |
| 1/2-13" | 3/4" | 1-7/8 | 1/4" | 1-1/8 | 2" | 700 lbs |
