Product Information

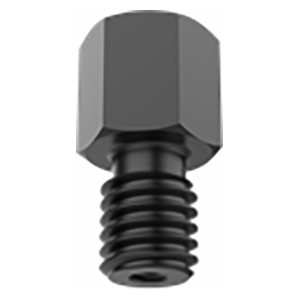

Position sensing threaded rest button with a hex machined .005 to .01” over nominal height for finish grinding after installation. Sensor contains .06 through hole allowing air to travel through and detect whether a part is loaded utilizing a sensor. The position sensing rest button also contains a #10-32 tapped hole on the shank for installation of a threaded nipple for easy air line installation. Available in inch and metric, Made in the USA
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| 1215 Steel | carburized-hardened .015 to .020" deep | Black Oxide | ✔ | ✔ |

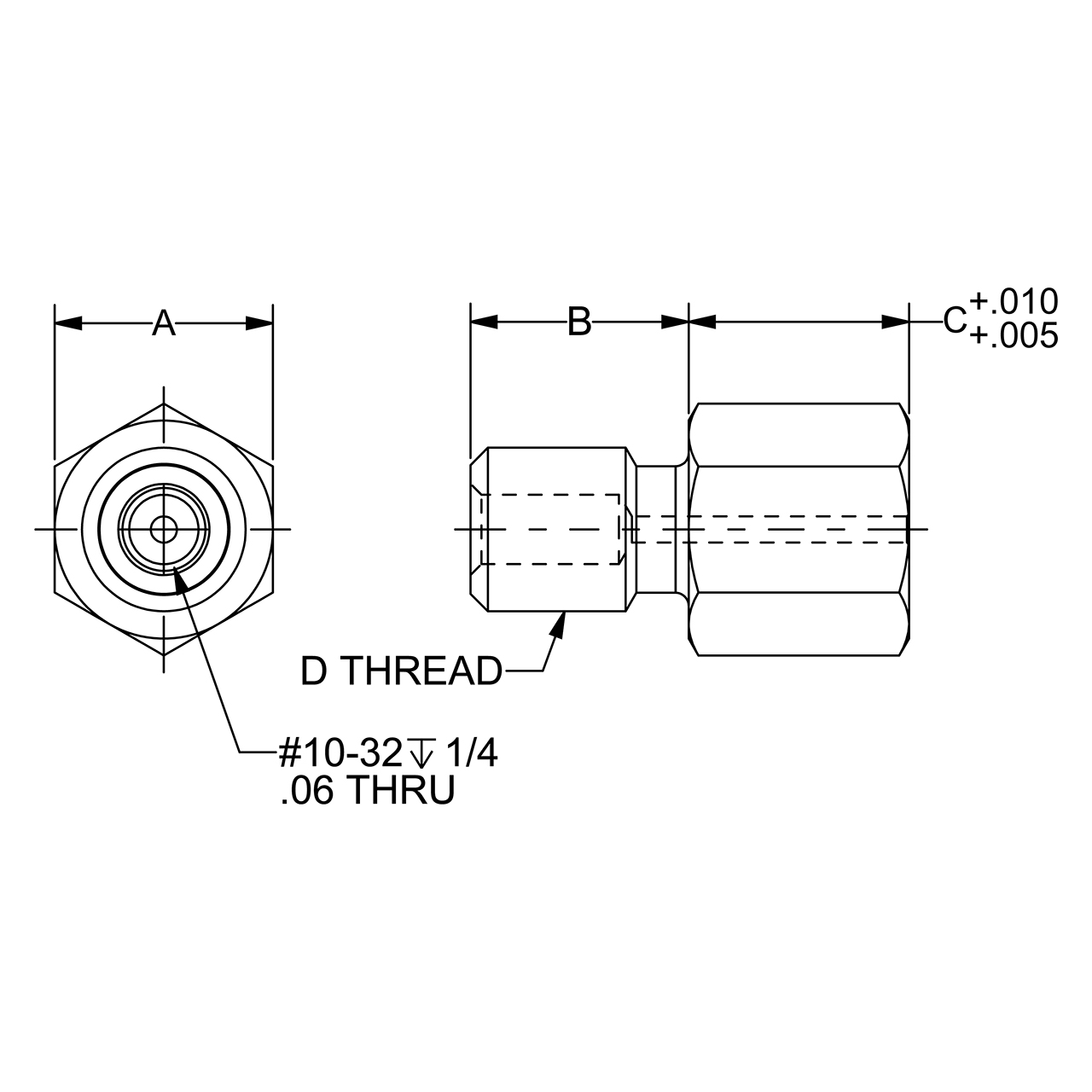

Parts Specification
| Part Number | A | B | CNOMINAL | CACTUAL | DTHREAD |
| CL-8-SRB-PR | 1/2 | 1/2 | 1/2 | .5000 | 3/8-16 |
