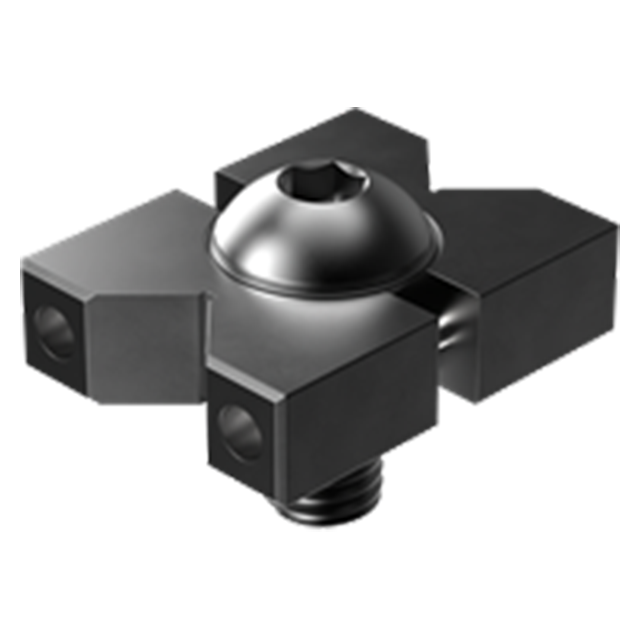

Tiny Vise Double Edge Clamps
The new V-jaw version of popular Tiny Vise is ideal for clamping round workpieces. The 90° V jaw can also be used to clamp a rectangular workpiece from two directions with a single clamp at its corner. Tiny Vise Double Edge Clamps allow clamping two workpieces at the same time with equal force. These mini edge clamps securely grip the side of a workpiece to keep the top clear for machining. Patented design provides strong, reliable clamping force with the easy turn of a hex wrench. These compact clamps are ideal for fixturing multiple parts, small or large. Made in USA.
Application Information
Multiple workpieces can be clamped extremely close together with these Double Edge Clamps.
Clamping Action
Clamping force is applied by positive screw action with the easy turn of a hex wrench (not with an unreliable, unsafe eccentric cam as used in other designs). A high-strength cap screw and thrust washer engage a mating countersink to exert strong clamping force. Much more durable than other designs.
Force Equalization
Only Tiny Vise Double Edge Clamps compensate for size variation when clamping two workpieces. Thrust washers have ID clearance to enable them to float horizontally, allowing both clamping jaws to contact their part simultaneously. This ensures that both parts are securely clamped with equal force.
Optional Downthrust Force
Setup for Downthrust Force(with Bottom Thrust Washer)
Design Considerations
Tiny Vise clamps are designed to provide strong clamping force when tightened by hand. Do not exceed the recommended tightening torque. Recommended torque and clamping force are at 1/3 of yield strength, leaving 2/3 of holding capacity to resist external cutting forces.Double edge clamps should always be used to hold two workpieces, not just one; otherwise recommended torque and clamping force will be significantly reduced.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
| Thrust Washer | 1144 Steel | Heat Treated | Black Oxide | Yes | Yes |
| Flat-Head Socket Screw | Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread | B (Inch) | C (Inch) | D (Inch) | F Diameter (Inch) | G (Inch) | H (Inch) | J (Inch) | K (Inch) | L (Inch) | M (Inch) | Maximum Workpiece Diametermeter | Allowable Workpiece Size Differential (Inch) | Maximum Travel (with No Size Differential) | Recom- Mended Torque (ft-lbs) | Approx Horizontal Clamping Force At Recom- Mended Torque (lbs) |
| 1/2-13 | 0.500" | 0.500" | 0.635" | 0.875" | 1-1/4" | 5/16" | 1-1/2" | 1.706" | 0.26" | 0.569" | 15/16 | 0.060" | 0.114 WITH NO SIZE DIFFERENTIAL | 38 ft-lbs | 1200 lbs |
