Carr Lane’s Forged Swivel Hoist Rings feature a forged lifting ring and simpler construction for easy disassembly. Swivel Hoist Rings pivot 180 Degree and swivel 360 Degree simultaneously to allow lifting from any direction. Available with inch or metric threads in load capacities up to 10,000 lbs, many with a choice of bolt length. Complies with ASME B30.26 and CE.
Complies with ASME B30.26 and CE. Hoist Ring Technical Information Hoist Ring Safety Precautions Types of Hoist Rings

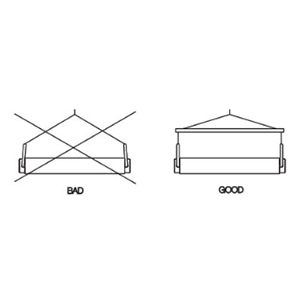

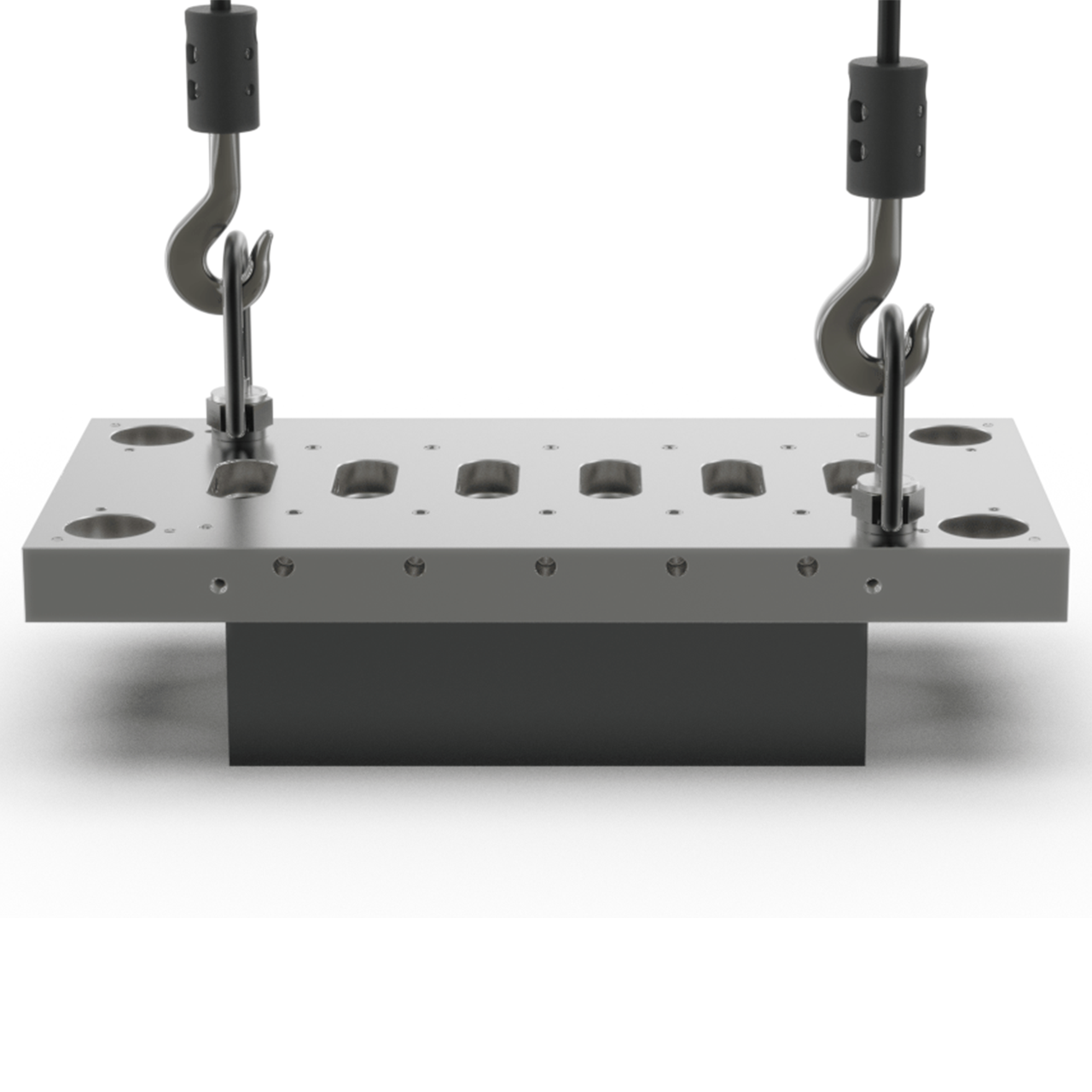

Forged Swivel Hoist Ring Application Forged Swivel Hoist Ring Application
Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely. Some hoist rings are available with a choice of bolt lengths. Use the shortest bolt length only for steel plates, the other lengths for weaker materials and for through-hole mounting with a washer and nut.

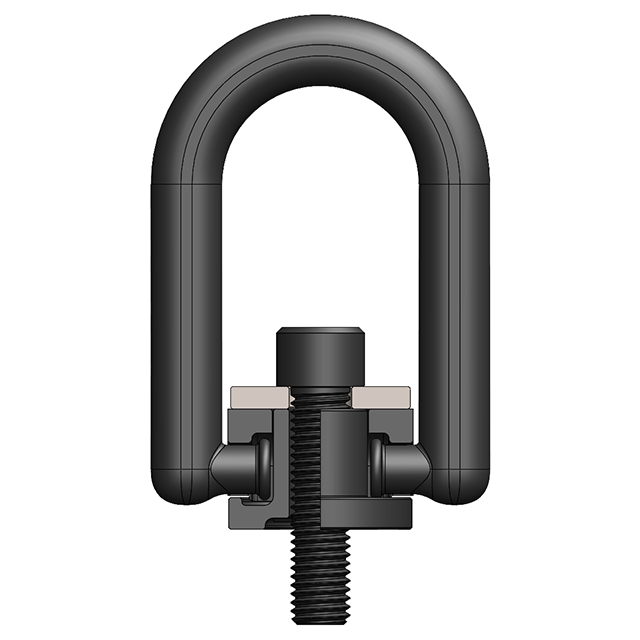

| ITEM | MATERIAL | HEAT TREAT | FINISH |
| Body Ring Bushing | 4140 Steel | Heat Treated | Black Oxide |
| Washer | 17-4PH | H900 | Passivated |

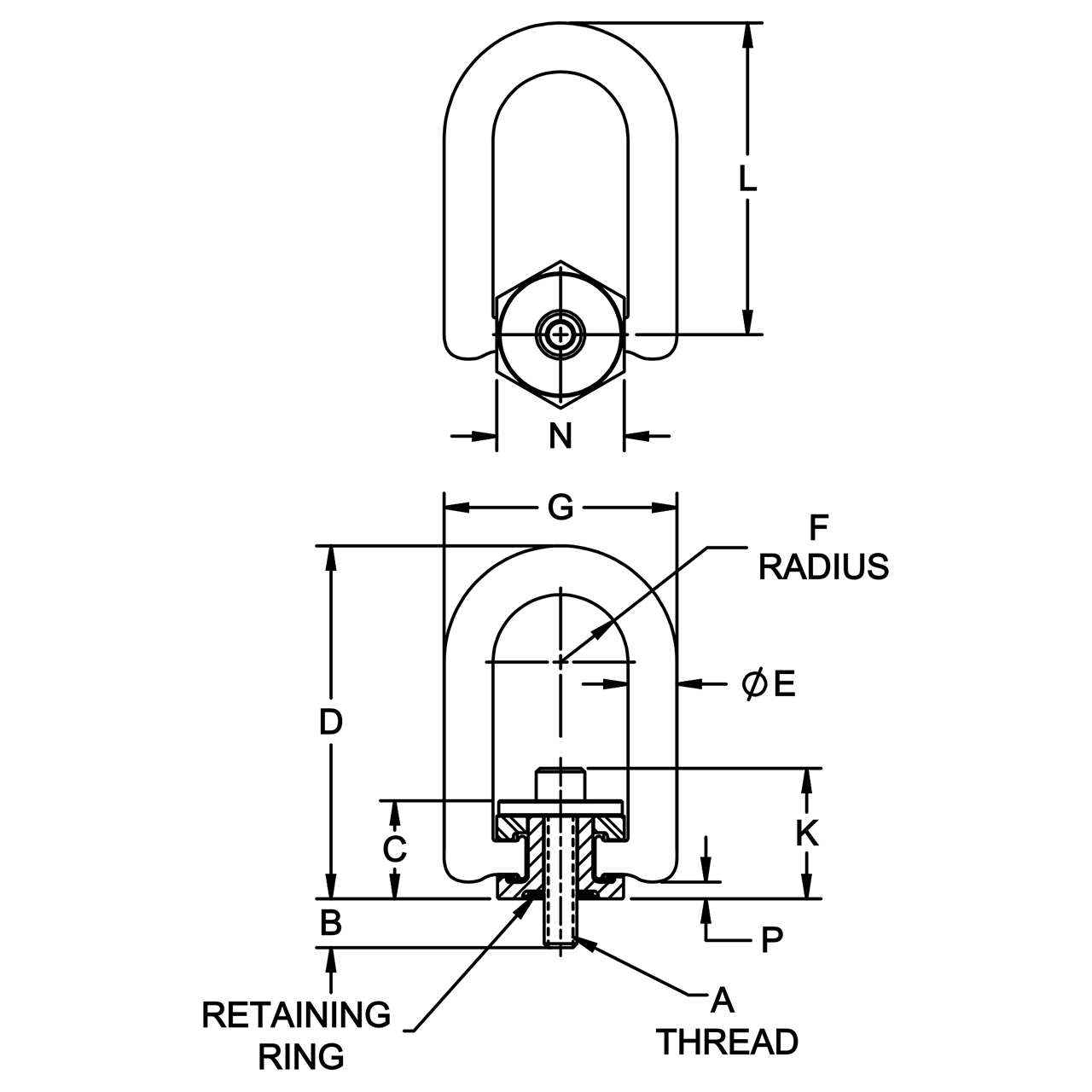

| Part Number | LOAD RATING (TON) | A THREAD | B | C | D | E DIA | F | G | K | L | N | P | INSTALLATION TORQUE (ft-lbs) |
| CL-800-FSHR-1 | .4 | 5/16-18 | .56 | .94 | 3.28 | .42 | .64 | 2.26 | 1.25 | 2.87 | 1.22 | .17 | 7 |
