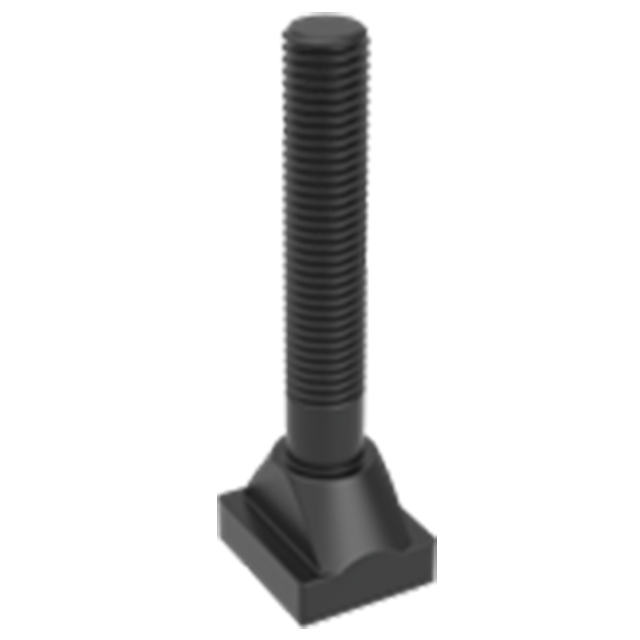

Forged T-Bolts
High-quality high-strength forged clamping bolt for T-slotted machine tables. Fully machined flats where the T-Bolt contacts the T-Slot. Provides full bearing with the slot to prevent twisting or jamming. One-piece design can provide a larger diameter stud compared to a T-Nut & Stud combination.
Technical Information
Material
| Material | Heat Treat | Finish |
| Forged Medium Carbon Steel | Grade 8.8, Rc 24-30 | Black Oxide |
Parts Specification
| A Slot Width (Inch) | B Thread (Inch) | C (Inch) | D X E (Inch) | F Length (Inch) | G (Inch) |
| 1/2"" | 1/2-13" | 0.31" | 0.87 x 0.87" | 3.94" | 1.97" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
