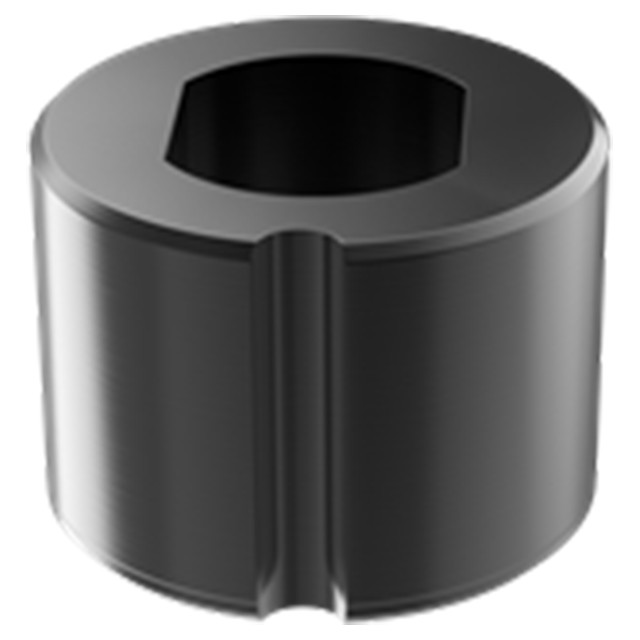

Slotted Locator Bushings
Additional sizes available in stainless steel and Carbide!Slotted Locator Bushings can be used with many types of alignment pins and locating pins to align two holes without binding. Precision bushing with a tight tolerance in one direction and full relief in the perpendicular direction. Made in USA.
Application Information
A standard press-fit P bushing (for primary location) and a Slotted Locator Bushing (for secondary location) are used with L Pins to align two holes without binding.
Installation
To install, first drill and ream hole for roll pin (furnished), then bore large bushing hole for 0.0003-0.0005" press fit. Press in bushing and roll pin simultaneously for accurate orientation.
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Bushing | Tool Steel | Rc 58-62 | Black Oxide | Yes | Yes |
| Roll Pin | Spring Steel | - | N/A | Yes | Yes |
Parts Specification
| Pin Diameter (Inch) | A | B Diameter (Inch) | C Diameter (Inch) | L (Inch) | M Diameter (Inch) | N (Inch) |
| 1/2" | 0.5001/0.5007 | 0.625" | 1.0000" | 0.40" | 3/16" | 3/8" |
