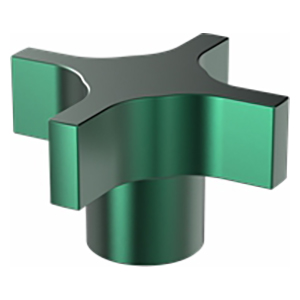

Extruded, easy-to-grip aluminium clamping knob. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. Extruded hand knobs available blank, tapped, tapped through, or reamed. Available with tapped-hole sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric) and reamed hole sizes from 1/4 to 3/4 (6mm to 20mm in metric).

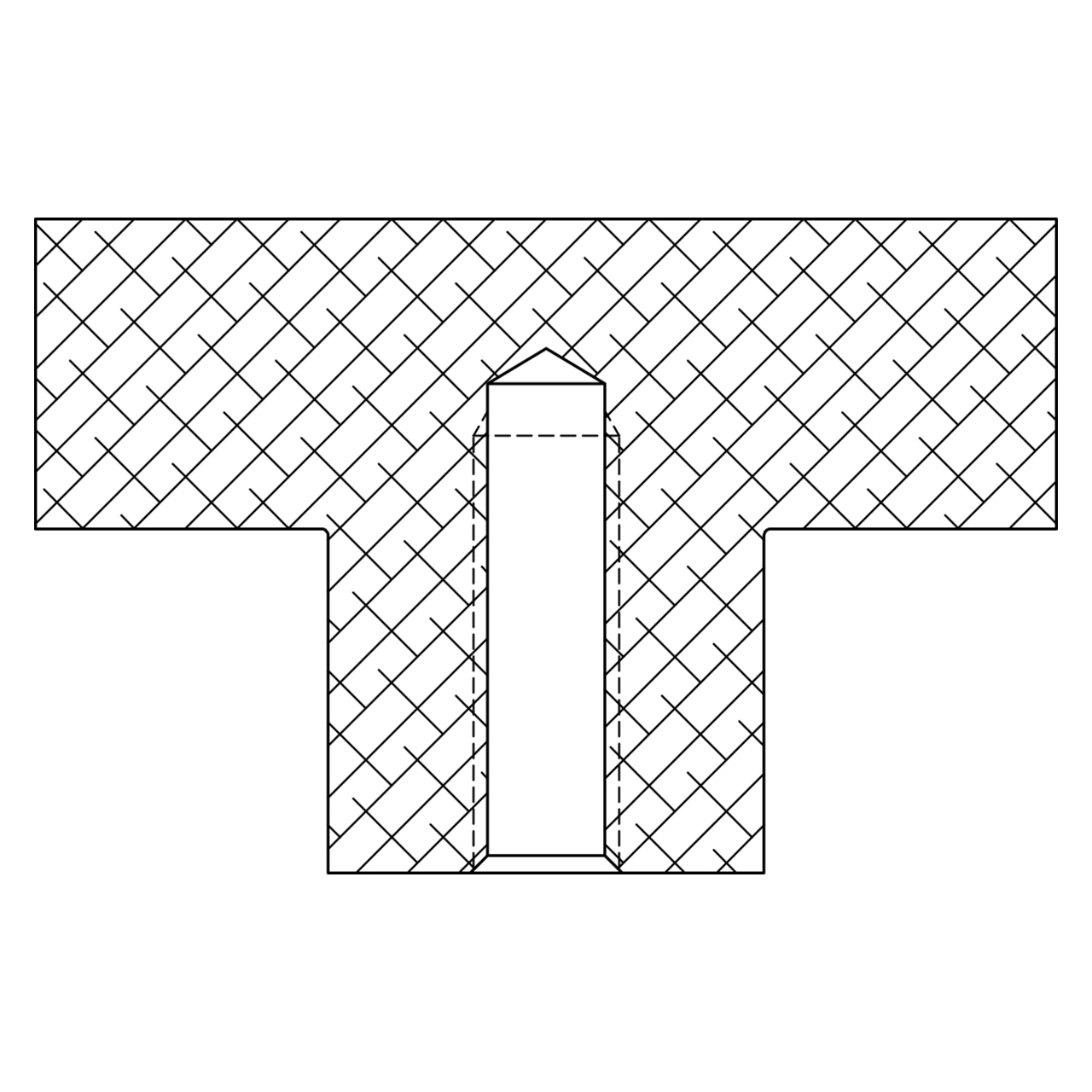

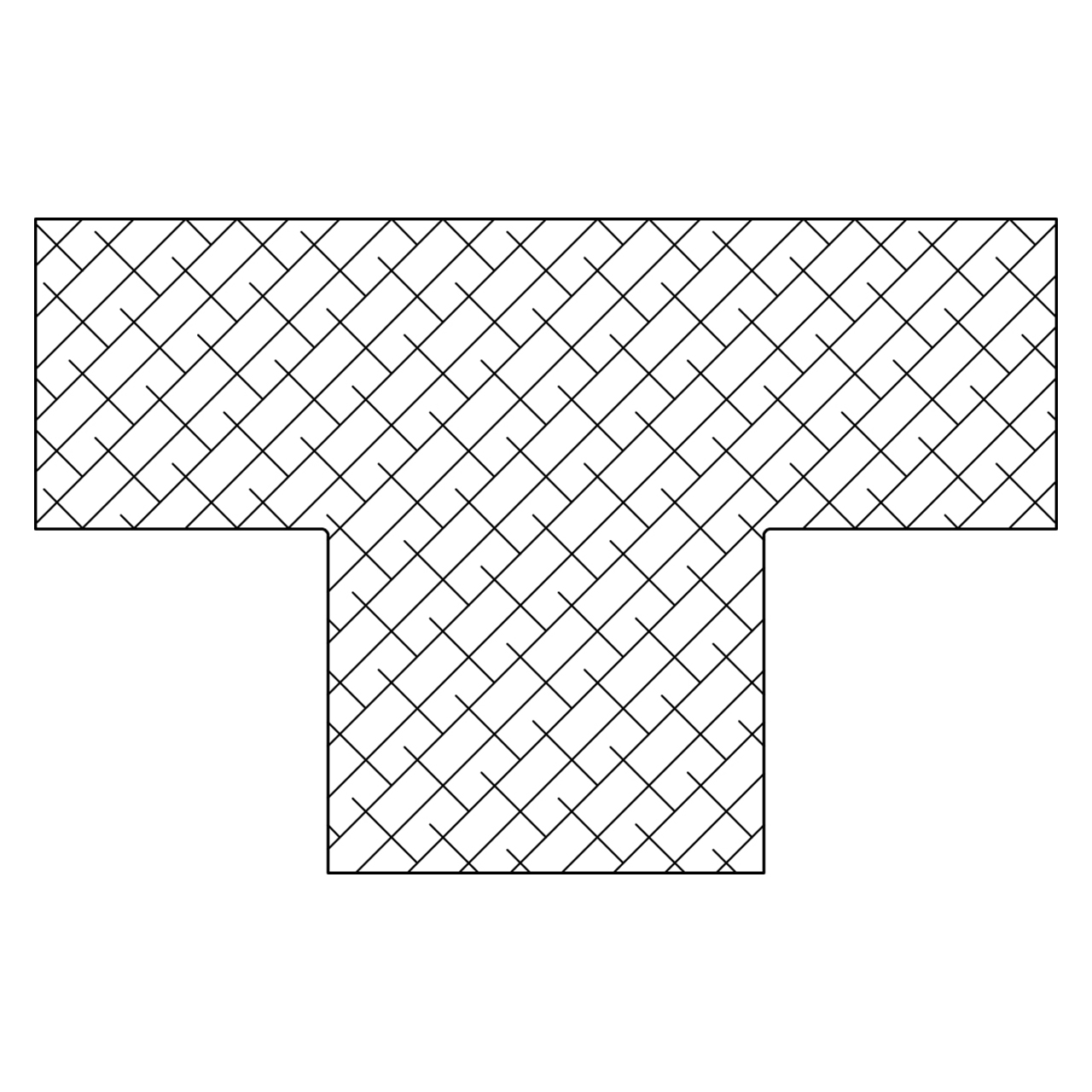

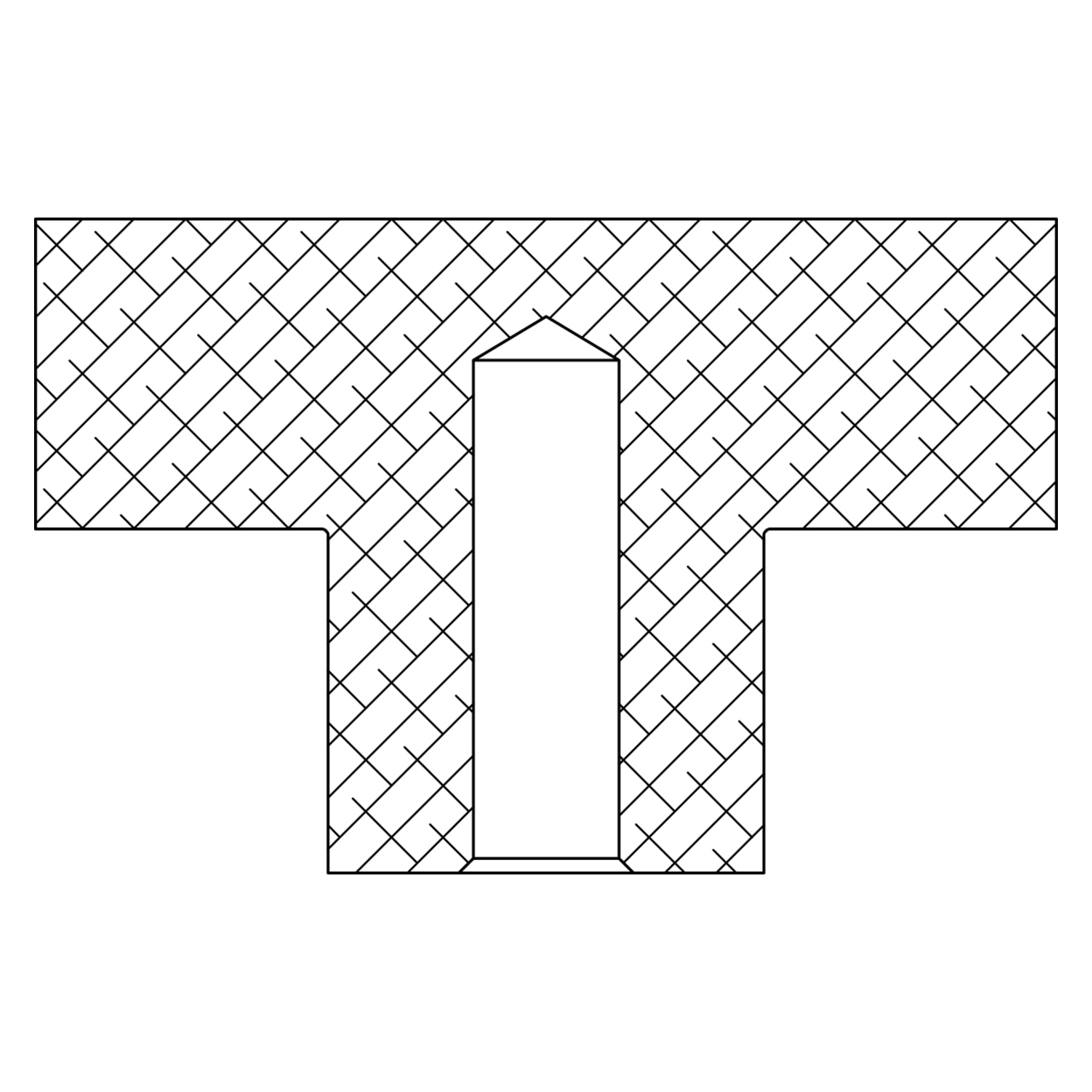

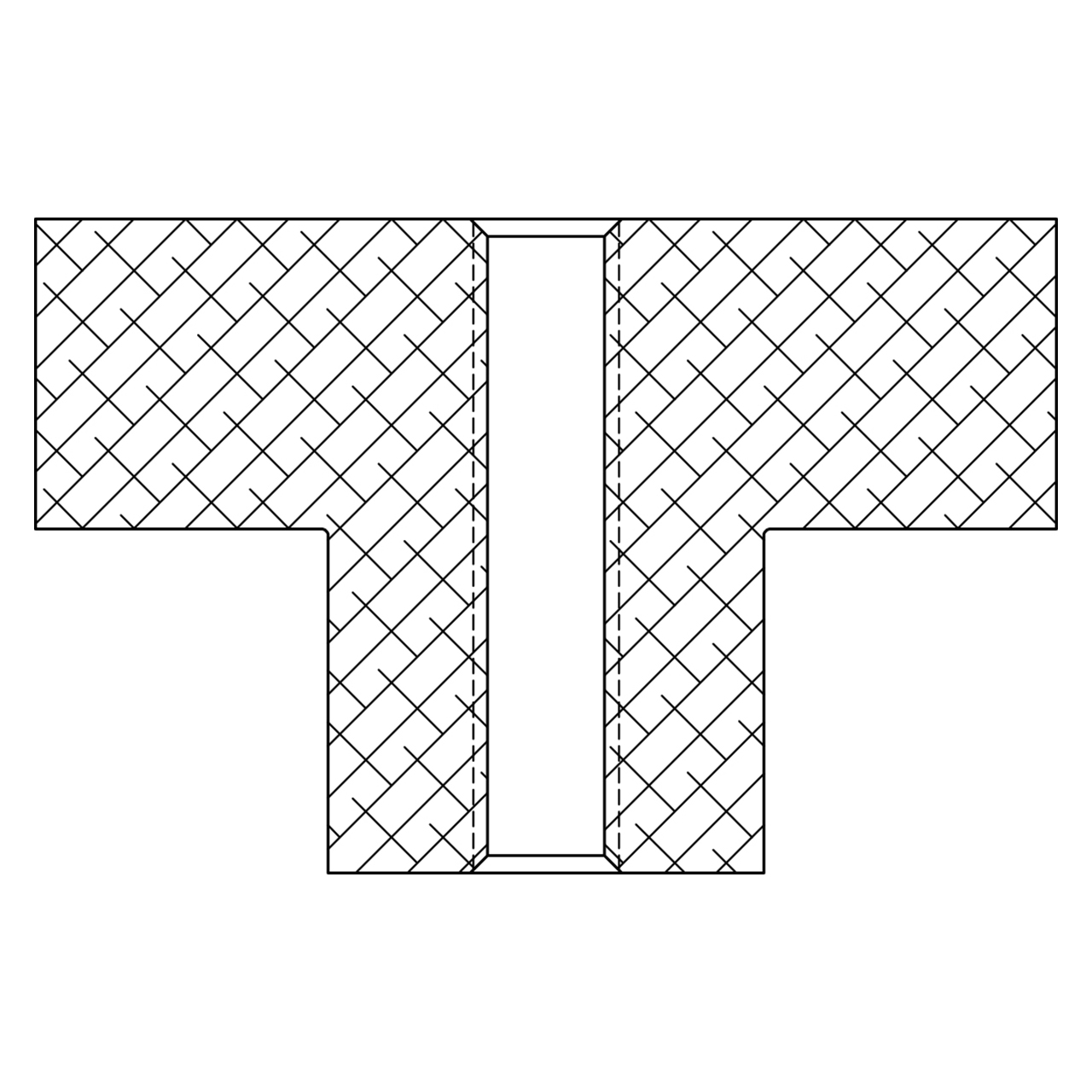

Blank Reamed Tapped Through Tapped
| MATERIAL | HEAT TREAT | FINISH | RoHS |
| Extruded Aluminium | - | Green Anodize | ✔ |

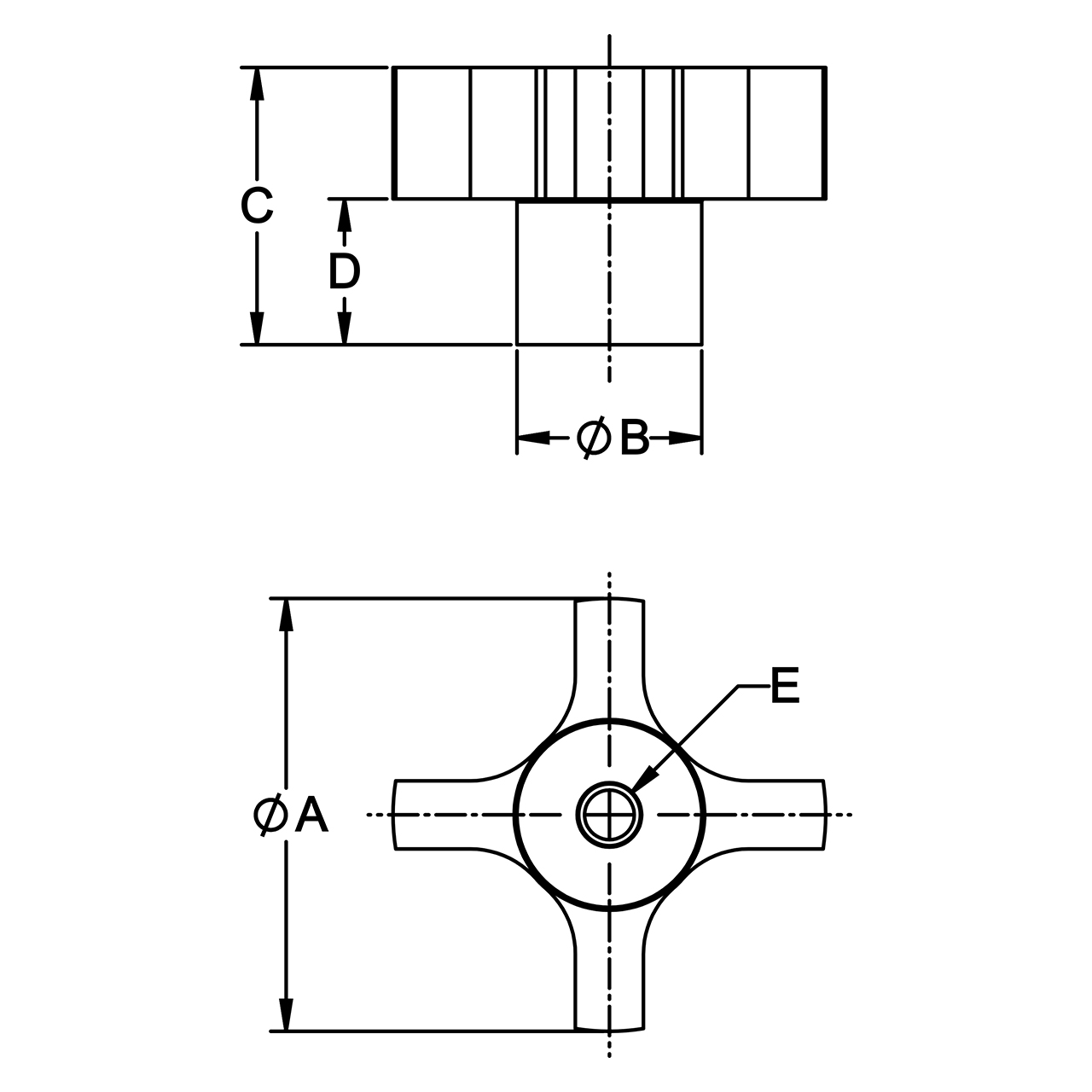

| Part Number | A DIA | B DIA | C | D | E THREAD |
| CL-8TT-HKE-30 | 2 | 13/16 | 1-3/8 | 3/4 | 1/2-13 |
