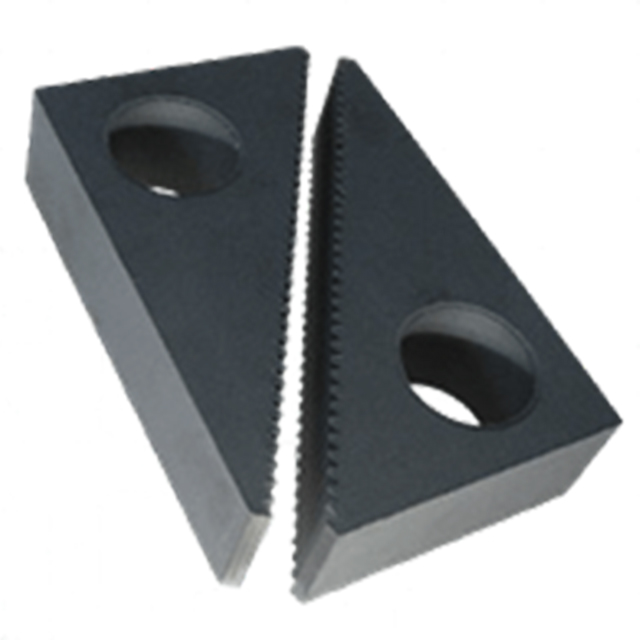

Step Blocks
These versatile support blocks have serrations which are specially designed for excellent load bearing. A pair of blocks can be used together as a two-piece rest block, or individually with a Step Clamp. All of Step Blocks and Step Clamps have matching serrations, for maximum versatility. Larger blocks have a finger hole for easier handling.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Step Block | Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| A | B | C | Height Range |
| 2 | 3.385 | 5.604 | 3-1/2 to 9 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
