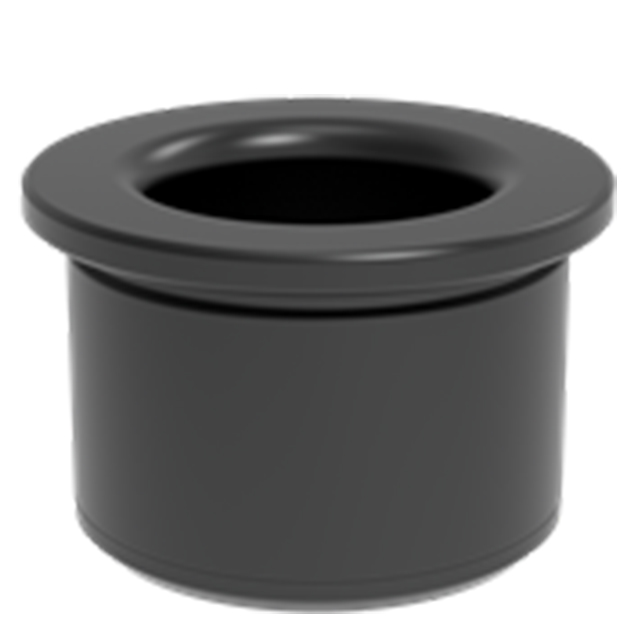

Bushings for Bullet-Nose Pins
Precision bushing used with a Bullet-Nose Round Pin or Bullet-Nose Diamond Pin to align two pieces of a fixture. The pin's shank diameter and the bushing's OD are exactly the same size, to allow boring the installation hole in both fixture pieces at the same time for greater accuracy. The bushing's ID and OD are concentric to within .0003" TIR. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Steel | Heat Treated Rc 50-55 | Black Oxide | Yes | Yes |
Parts Specification
| A Diameter (Inch) | B Diameter Nominal (Inch) | B Diameter Actual (Inch) | C Diameter Nominal (Inch) | C Diameter Actual (Inch) | D (Inch) | E (Inch) |
| 1-1/8" | 3/4" | 0.7502" | 1" | 1.0015" | 1/2" | 1/8" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
3/4"
Diameter (Decimal Inch):
0.7500"
Diameter (mm):
19.05mm
