Riser Cylinders

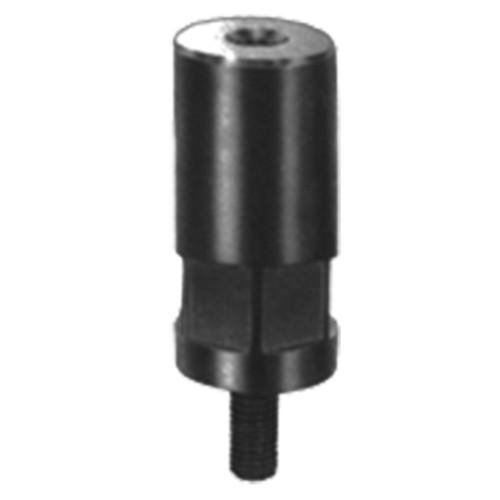

Stackable riser that provides additional height without taking up much space. Especially useful for mounting Hook Clamps, Heavy-Duty Screw Jacks, and Adjustable Side Stops. Integral mounting screw allows tightening by turning the body with a hex wrench.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1045 Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| Modular System Size | E Thread Size (Inch) | A (Inch) | B (Inch) | C Diameter (Inch) | D (Inch) |
| MINI | 5/16-18" | 2" | 7/8" | 1" | 2-3/4" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread:
5/16-18
