Cam Edge Clamps-Slotted Base

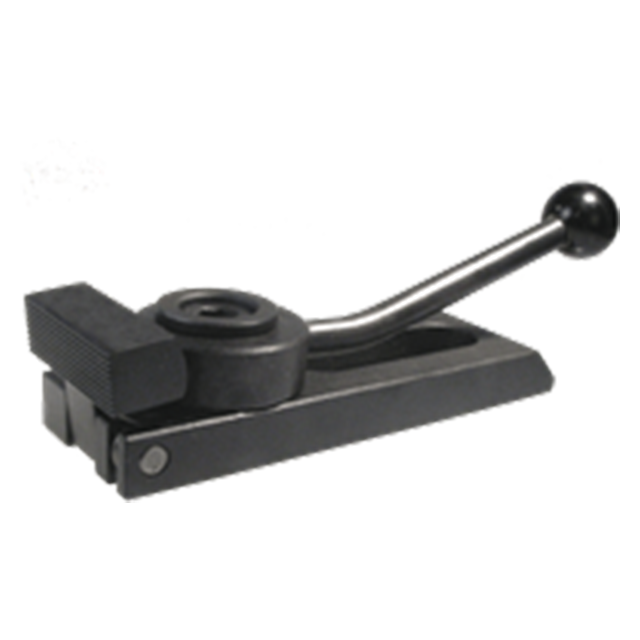

Pivoting-nose edge clamp actuated by a cam handle for fast action. The serrated nose pivots to exert clamping force forward and downward at the same time. Smooth spiral cam locks positively anywhere within its 180° throw.
Application Information

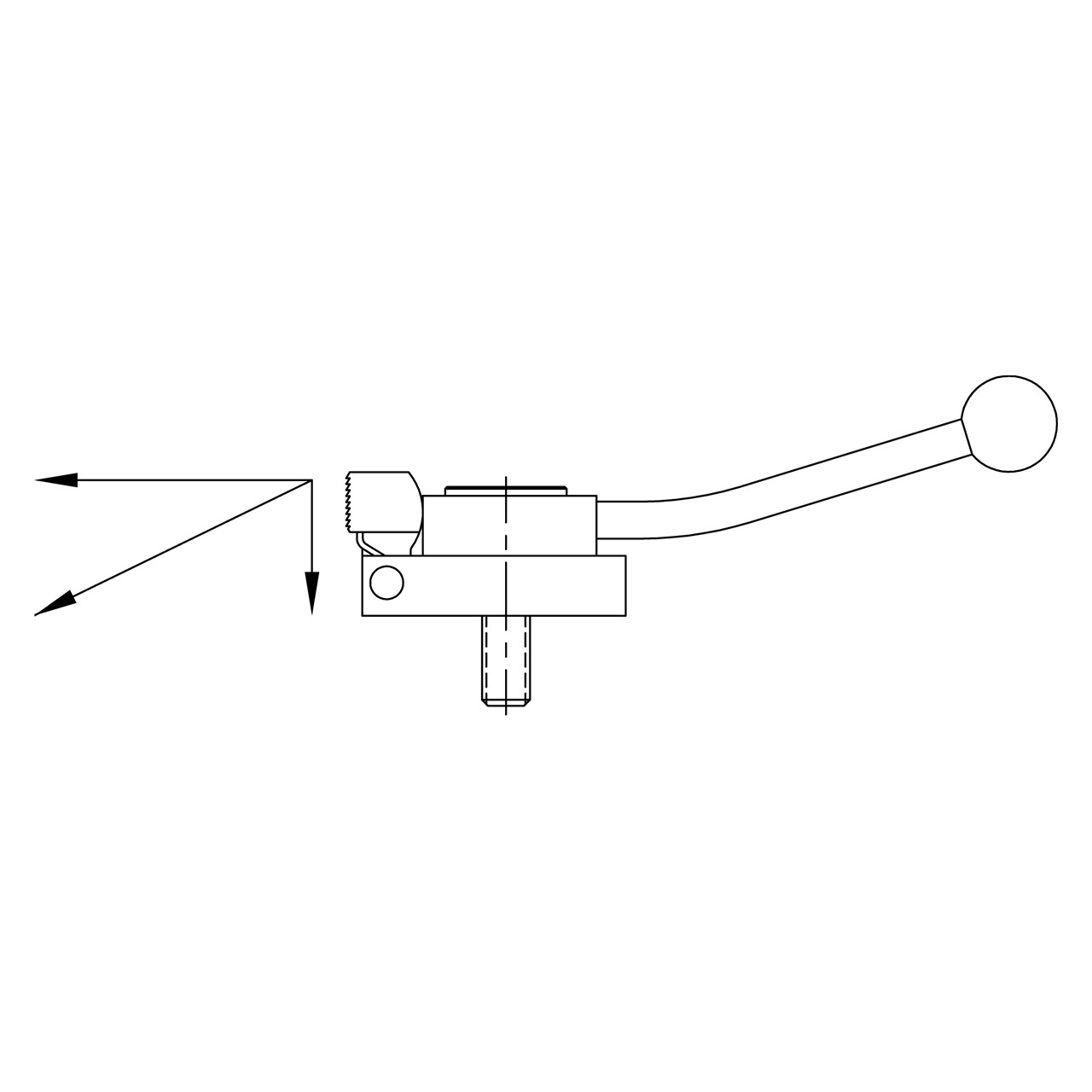

Nose pivots to exert clamping force forward and downward at the same time.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Steel components with hardened wear surfaces | - | Black Oxide | Yes | Yes |
| Ball Knob | Black phenolic plastic | - | Black Oxide | Yes | Yes |
Parts Specification
| A Mounting Screw | Clamping Direction | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | K Min (Inch) | K Max | L (Inch) | M (Inch) | N (Inch) | P (Inch) | Maximum Horizontal Clamping Force (lbs) | Maximum Vertical Clamping Force (lbs) |
| 5/16-18 or M8 | Clockwise | 5/32" | 1-1/8" | 3-15/16" | 1-5/8" | 7/16" | 15/16" | 3-1/2" | 7/8" | 1 | 1-1/4" | 3/4" | 2" | 1" | 750 lbs | 50 lbs |
