Carr Lane CL-MF40-5611 | Clockwise Direction Black Oxide Coated Cam Edge Clamp

SKU: 50024131 Weight: 2.50 LBS Minimum Purchase: 1 unit
UPC:
$167.24
Ships: From Manufacturer
Shipping: Calculated at Checkout

About This Item

Cam Edge Clamps

Pivoting-nose edge clamp actuated by a cam handle for fast action. The serrated nose pivots to exert clamping force forward and downward at the same time. Smooth spiral cam locks positively anywhere within its 180° throw. The slotted base provides adjustable clamp location, ideal for mounting on modular tooling plates. Choice of clockwise or counterclockwise handle movement to clamp.The Cam Edge Clamps are for Standard System MF40 (slot for 1/2-13 mounting screw).

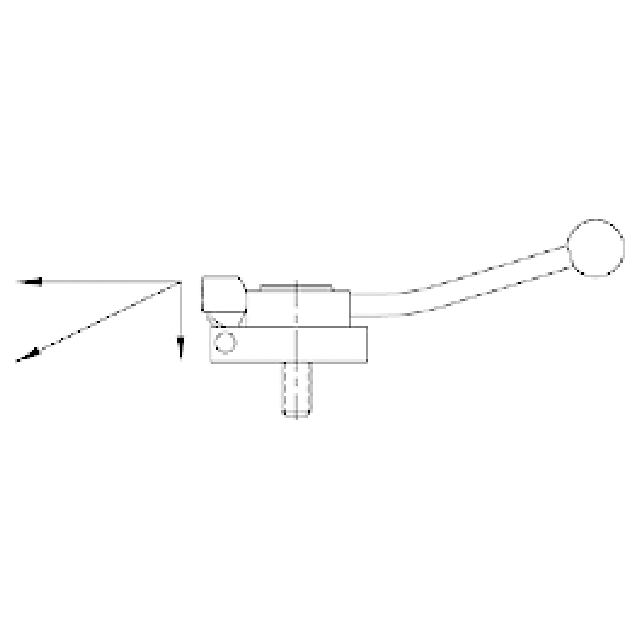

Application Information

Nose pivots to exert clamping force forward and downward at the same time.

Material

ItemMaterialHeat TreatFinishDFARSRoHS
BodySteel components with hardened wear surfaces-Black Oxide✔✔
Ball KnobBlack phenolic plastic--✔✔

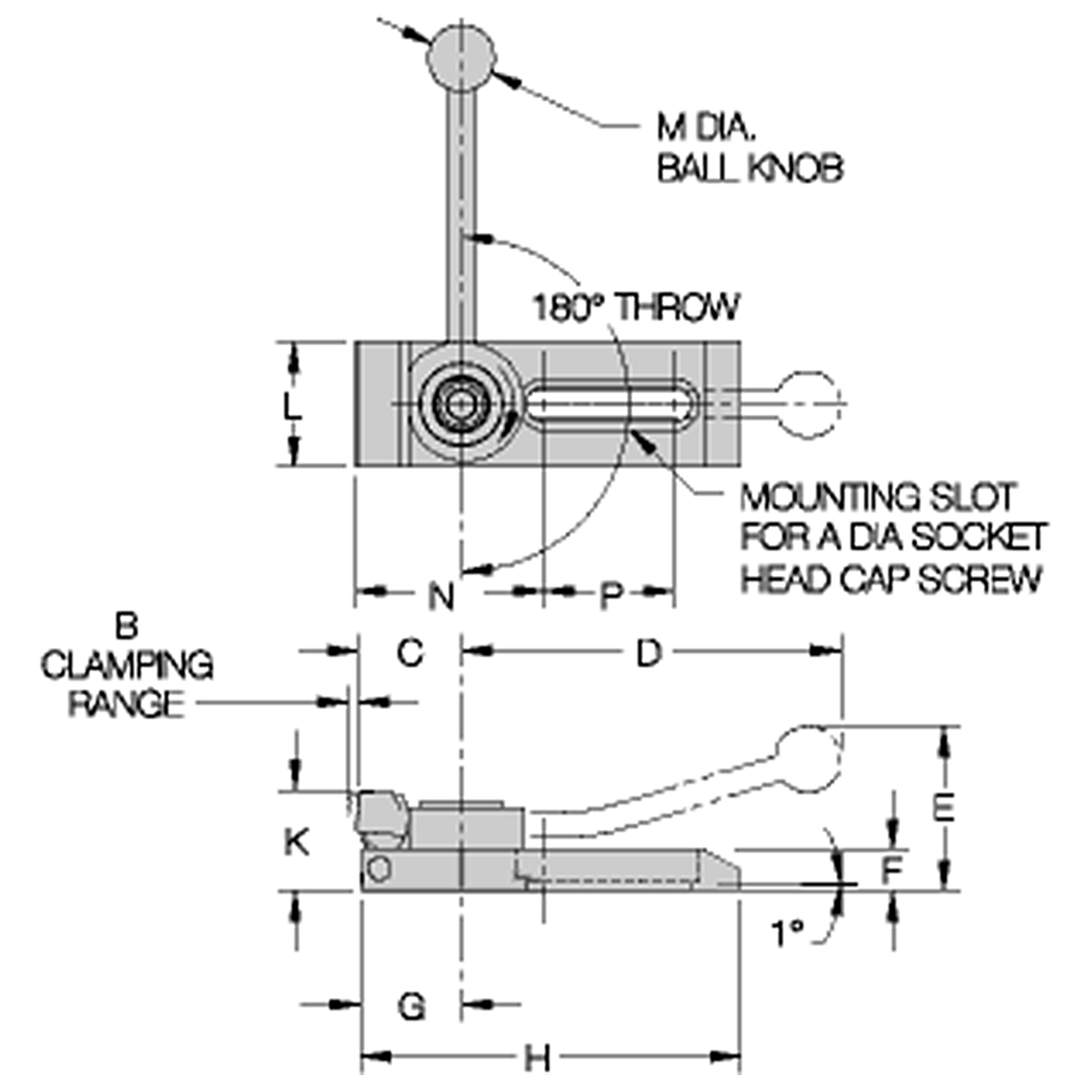

Parts Specification

AClamping DirectionBCDEFGHK MinK MaxLMNPMaximum Horizontal Clamping Force (lbs)Maximum Vertical Clamping Force (lbs)
1/2-13Clockwise7/321-9/165-3/42-1/25/81-1/261-5/161-1/21-7/812-15/1621500 lbs100 lbs
