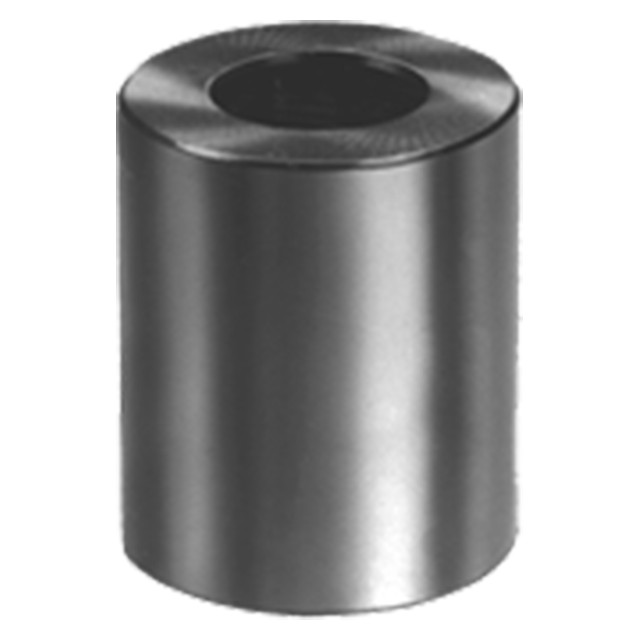

Extremely versatile locator that can be used either as a support or for side location. Precision ground on top, bottom, and outside diameter.
With the wide range of heights available, the Support Cylinders can be used as both side locators and supports.
Two Support Cylinders can accurately locate a large diameter, similar to using a V Block.
A Multipurpose Extension Support can be used to mount a Support Cylinder anywhere between grid points.
To position between grid points, the Support Cylinder can be mounted on a Multipurpose Extension Support. For additional height, the Support Cylinder can be mounted on a Multipurpose Riser Block.
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1045 or 1144 Steel | Heat Treated | Black Oxide | Yes | Yes |
| A (Inch) | B Diameter (Inch) | C Diameter (Inch) | D (Inch) |
| 1.0000" | 1.6250" | 0.5000" | 7/16" |
