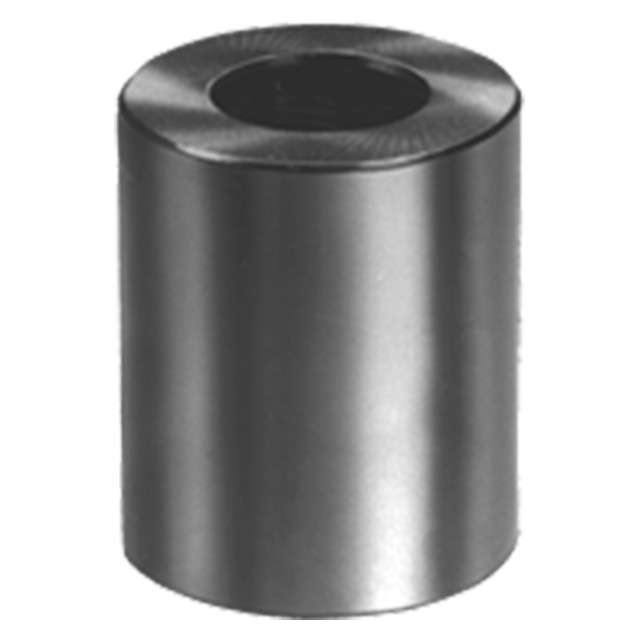

Support Cylinders
Extremely versatile locator that can be used either as a support or for side location. Precision ground on top, bottom, and outside diameter.
Application Information
With the wide range of available heights, Support Cylinders can be used as both side locators and supports.
Two Support Cylinders can accurately locate alarge diameter, similar to using a V Block.
Mounting
A Multipurpose Extension Support can be used to mount a Support Cylinder anywhere between grid points.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1045 or 1144 Steel | Heat Treated | Black Oxide | Yes | Yes |
Parts Specification
| A (Inch) | B Diameter (Inch) | C Diameter (Inch) | D (Inch) |
| 3.0000" | 2.0000" | 0.6250" | 1-1/16" |
