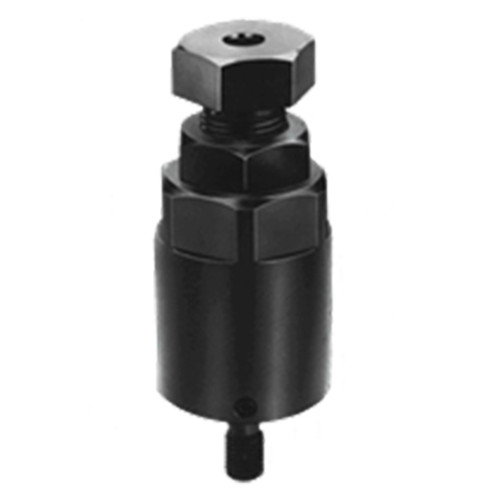

Heavy-Duty Screw Jacks
Heavy-duty adjustable support that accepts any of three different tips.
Application Information
Heavy-Duty Screw Jacks are available in three heights.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Jack Screw | 4135 Steel | Heat Treated | Black Oxide | Yes | Yes |
| Body | 1045 Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| G Threaded Mounting Stud (Inch) | A (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) | F (Inch) |
| 5/8-11" | 2-3/4" | 1-1/2" | 1-3/8" | 1-9/16" | 1-7/16" | 1-5/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
