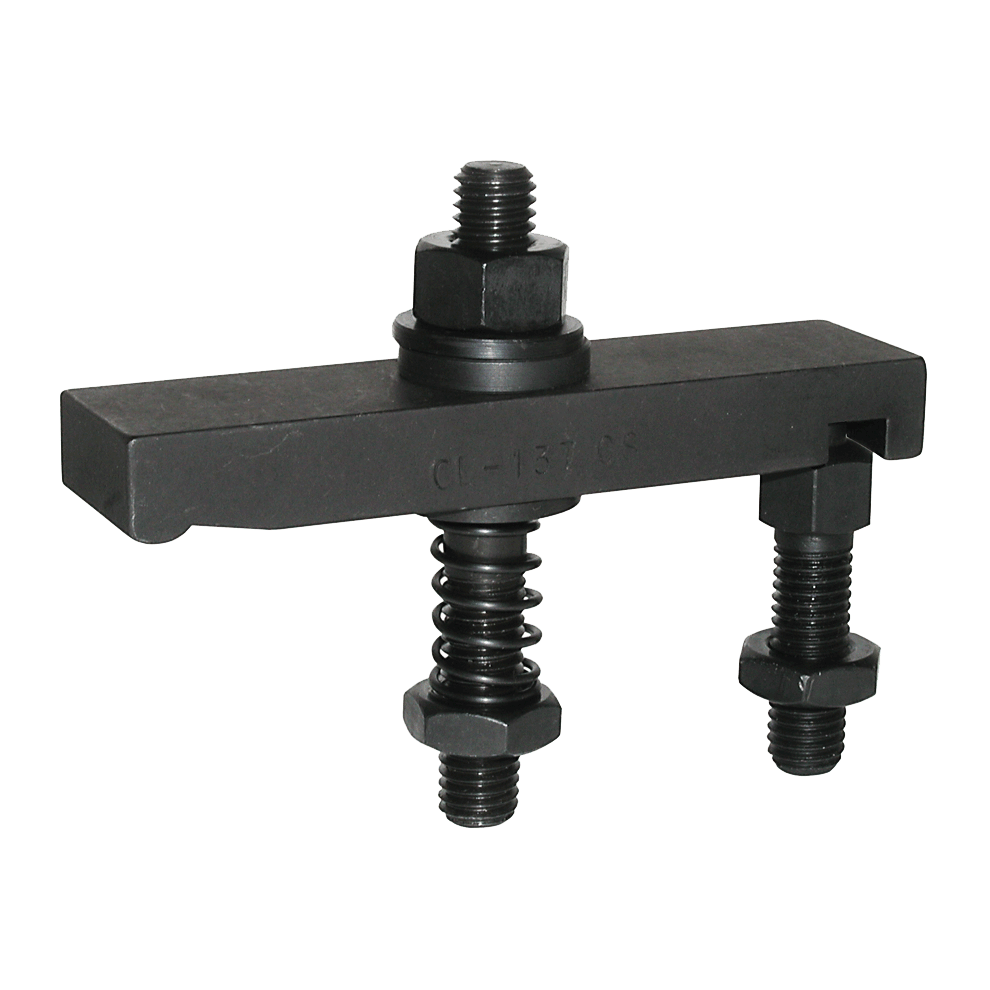

Heavy-duty steel version of the Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Made in USA.
Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.
This clamp assembly includes a Slotted-Heel Clamp Strap plus the following Items:
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
| Thread Size | Thread Pitch (mm) | A (mm) | B (mm) | C (mm) | E (mm) |
| M6 | 1mm | 63.5mm | 16mm | 9.5mm | 28mm |
