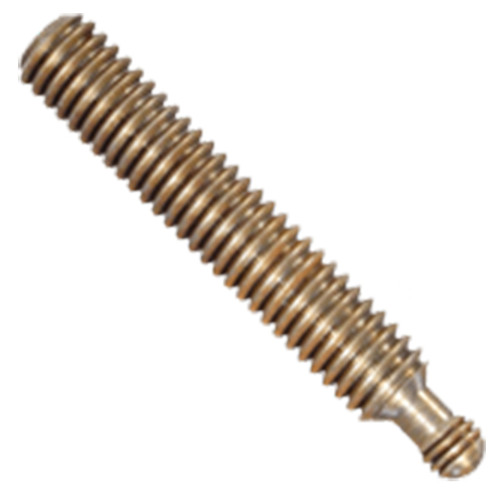

Carr Lane CLM-10-BSS-BO | M10 Thread x 1.5mm Pitch Steel Black Oxide Coated Bodies for Swivel Screw Clamp

Bodies for Swivel Screw Clamps

High-quality clamping screw that accepts a wide assortment of swivel feet. Socket-head version allows applying strong clamping force using a hex wrench. Choice of several lengths in each thread size. Made in USA.

Swivel Foot

Swivel Head Screws use the patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use. Delrin feet are optional for types A and B. Note: Delrin feet are not threaded-they snap on and off.

Design Considerations

For full hex-socket strength, the socket end of the body should be entirely inside its tapped hole during final tightening.

Material

Parts Specification
