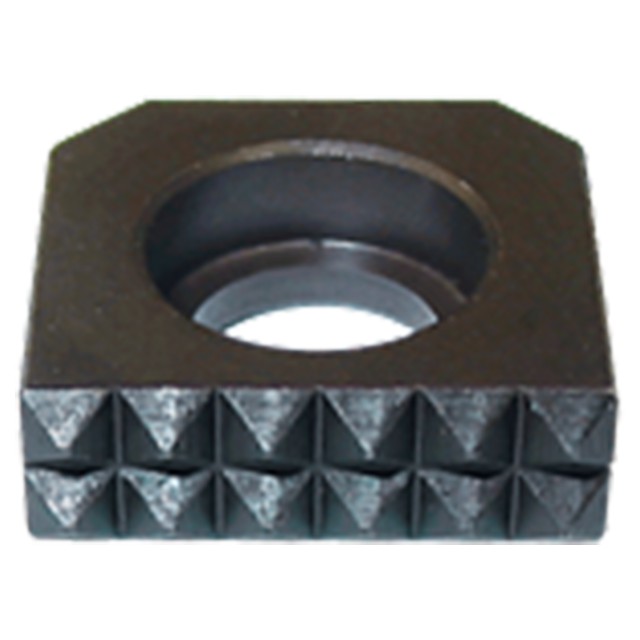

are helpful for applications where traditional face-mounted grippers are difficult to install. They have a useful flat profile because the mounting screw is parallel to the serrated face. Edge Grippers are ideal for mounting at the top edge of a clamping face such as a vise jaw. These serrated grippers are hard, replaceable inserts that provide additional holding force and/or wear resistance when installed in a fixture. They are designed to slightly penetrate the workpiece to significantly increase gripping force, rather than relying on static friction alone. Made in USA.
Edge Grippers are ideal for mounting at the top edge of a clamping face such as a vise jaw.
Edge Grippers should be mounted in a flat-bottom recess that provides support behind the gripper. Fasten with a standard socket-head cap screw. The serrated face should project 50 to 100% of serration height for maximum effectiveness.
| Material | Heat Treat | Finish | DFARS | RoHS |
| M-2 Tool Steel | Heat Treated Rc 60-62 | Black Oxide | Yes | Yes |
| A (mm) | B (mm) | Serrations | Serration Dimensions (mm) | C Mounting Screw | Counterbore Depth (mm) | D (mm) |
| 10mm | 6mm | Extra Fine | 2.4x90ยฐmm | M3 or #6 | 3.8mm | 1.6mm |
