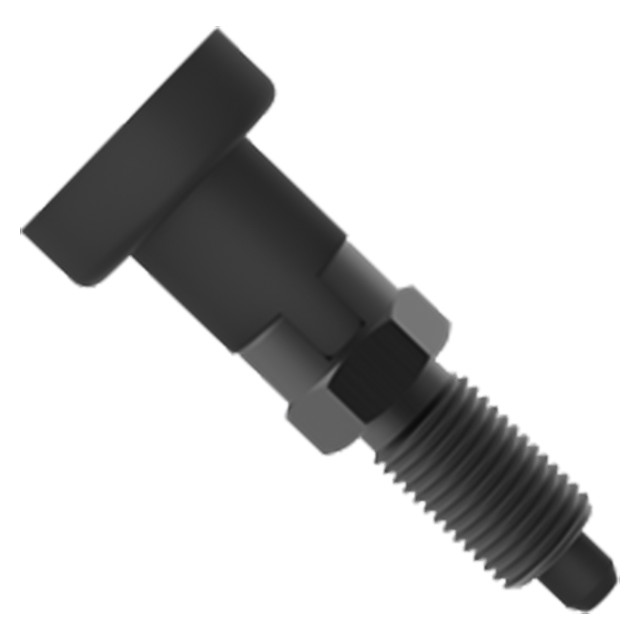

Precision indexing plunger with a attractive knob handle for convenient retraction. Threaded-body version allows adjustment and can be secured with an optional Jam Nut. Provides high strength and durability in an extremely compact assembly. Hardened and ground plunger. Tip has a slight taper for easy alignment.
The locking type has a spring-loaded plunger that locks in retracted position. To lock, pull the knurled knob back and turn 90ยฐ. Body is notched at 90ยฐ to keep the knob in its retracted position.
| Stainless Steel | ||||
| Item | Material | Heat Treat | Finish | RoHS |
| Knob | Stainless Steel | - | - | Yes |
| Plunger | Stainless Steel | - | - | Yes |
| Body | Stainless Steel | - | - | Yes |
| Jam Nut | Stainless Steel | - | - | Yes |
| A Thread | Thread Pitch (mm) | B Diameter Nominal (mm) | B Diameter Actual (mm) | C (mm) | D (mm) | E (mm) | F Diameter (inch) | G (mm) | J (mm) | L (mm) | Initial End Force (lbs) | Final End Force (lbs) |
| M16 | 1.5 mm | 8 mm | 7.98/7.96 mm | 7 mm | 26 mm | 23 mm | 31" | 8 mm | 19 mm | 68 mm | 2 lbs. | 5.9 lbs. |
