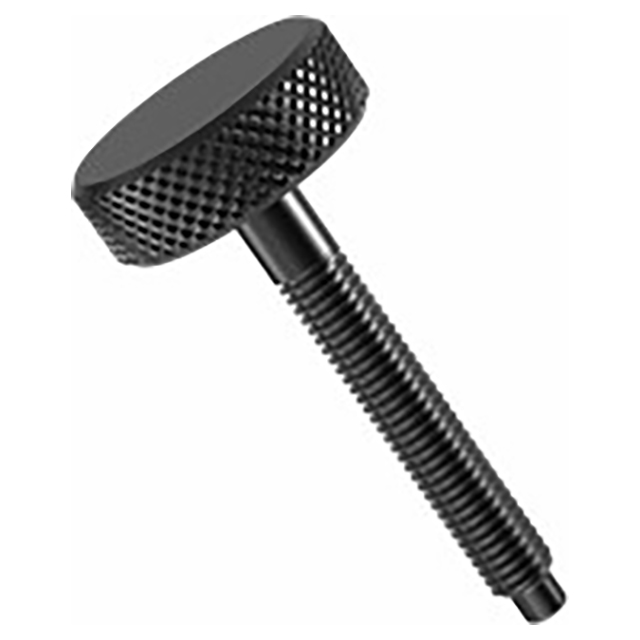

Carr Lane CLM-10-KHS | M10 Thread x 1.5mm Pitch Knurled-Head Screw

About This Item

Knurled-Head Screws

High-quality thumb screw. Knurled head provides a positive grip for finger tightening in light clamping applications.

Application Information

Material

Steel
Material	Heat Treat	Finish	DFARS	RoHS
1215 Steel	Carburized-Hardened	Black Oxide	Yes	Yes

Parts Specification

A Thread (Inch)	Thread Pitch (mm)	B (mm)	C Diameter (mm)	D (mm)	E (mm)	F Diameter (mm)	G (mm)
M10 inch	1.5mm	40mm	32mm	11mm	6.5mm	6.9mm	4.8mm
