Carr Lane CLM-10-SLF | M10 Thread x 1.5mm Pitch Stud leveling Feet

$10.87
Ships:
From Manufacturer
Brand:
Carr Lane
Thread Size:
M10
Ships:
From Manufacturer
SKU:
50016188
UPC:
Weight:
0.23 LBS
Shipping:
Calculated at Checkout

Stud Leveling Feet-Steel, Zinc Plated

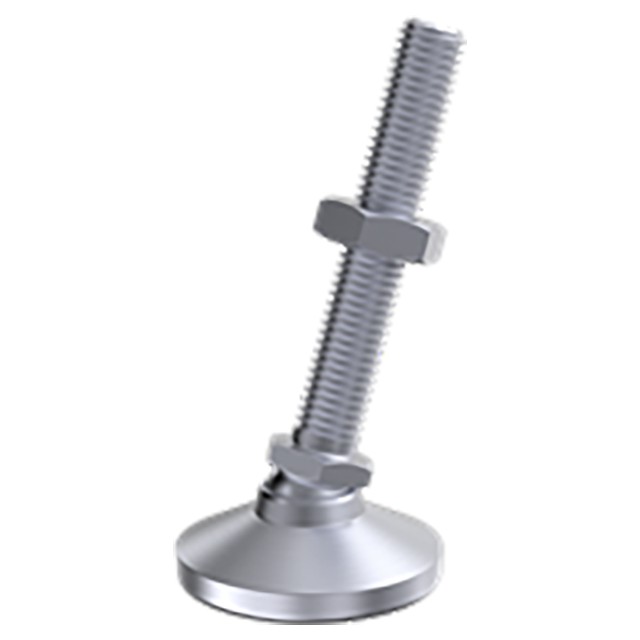

High-quality, heavy-duty leveling foot with a large-diameter pad and integral stud. Stud and swivel ball are one solid piece. Large swivel ball provides high load capacity with a 20° total swivel angle. Made in USA.

Application Information

A Stud Leveling Foot can be used as a clamp rest for a Tapped-Heel Clamp Strap

Design Considerations & Safety Precautions

Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Load capacity will drop significantly with longer studs.

Material

ItemMaterialHeat TreatFinishDFARSRoHS
Body1215 SteelCarburized-HardenedYellow Chromate or Clear Zinc PlatedYesYes
Pad1215 Steel-Yellow Chromate or Clear Zinc PlatedYesYes

Parts Specification

A ThreadThread Pitch (mm)B (mm)C Diameter (mm)D (mm)E (mm)F (mm)Load Rating (kg)
M101.5mm17mm32mm5mm22mm51mm1200 kg
