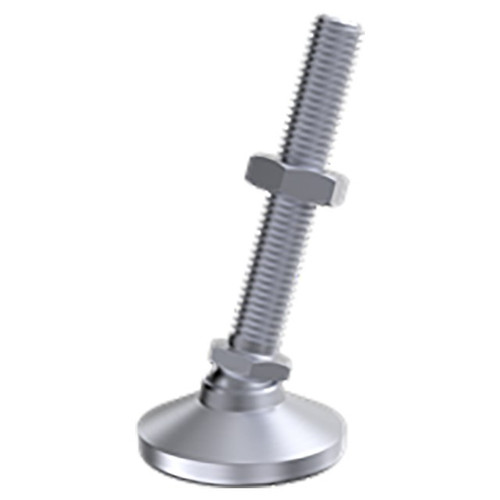

High-quality, heavy-duty leveling foot with a large-diameter pad and integral stud. Stud and swivel ball are one solid piece. Large swivel ball provides high load capacity with a 20ยฐ total swivel angle. Made in USA.
A Stud Leveling Foot can be used as a clamp rest for a Tapped-Heel Clamp Strap
Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Load capacity will drop significantly with longer studs.
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | Carburized-Hardened | Yellow Chromate or Clear Zinc Plated | Yes | Yes |
| Pad | 1215 Steel | - | Yellow Chromate or Clear Zinc Plated | Yes | Yes |
| A Thread | Thread Pitch (mm) | B (mm) | C Diameter (mm) | D (mm) | E (mm) | F (mm) | Load Rating (kg) |
| M12 | 1.75mm | 19mm | 47.5mm | 6.5mm | 28.5mm | 51mm | 1700 kg |
