Carr Lane CLM-10-SP | 10.00mm Diameter Shoulder Pin

Product Information

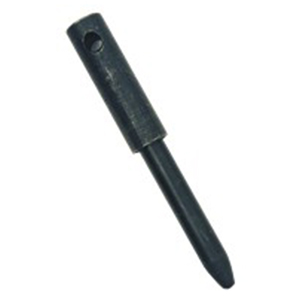

Removable locating pins with a straight handle, precision ground for accurately aligning holes. The pin body is inset into a solid handle and silver soldered to create a sturdy assembly. The handle end has a small hole for attaching an optional cable. Available in pin diameters from 1/4 to 1/2" (6 to 12mm in metric). Made in USA.

Application Information

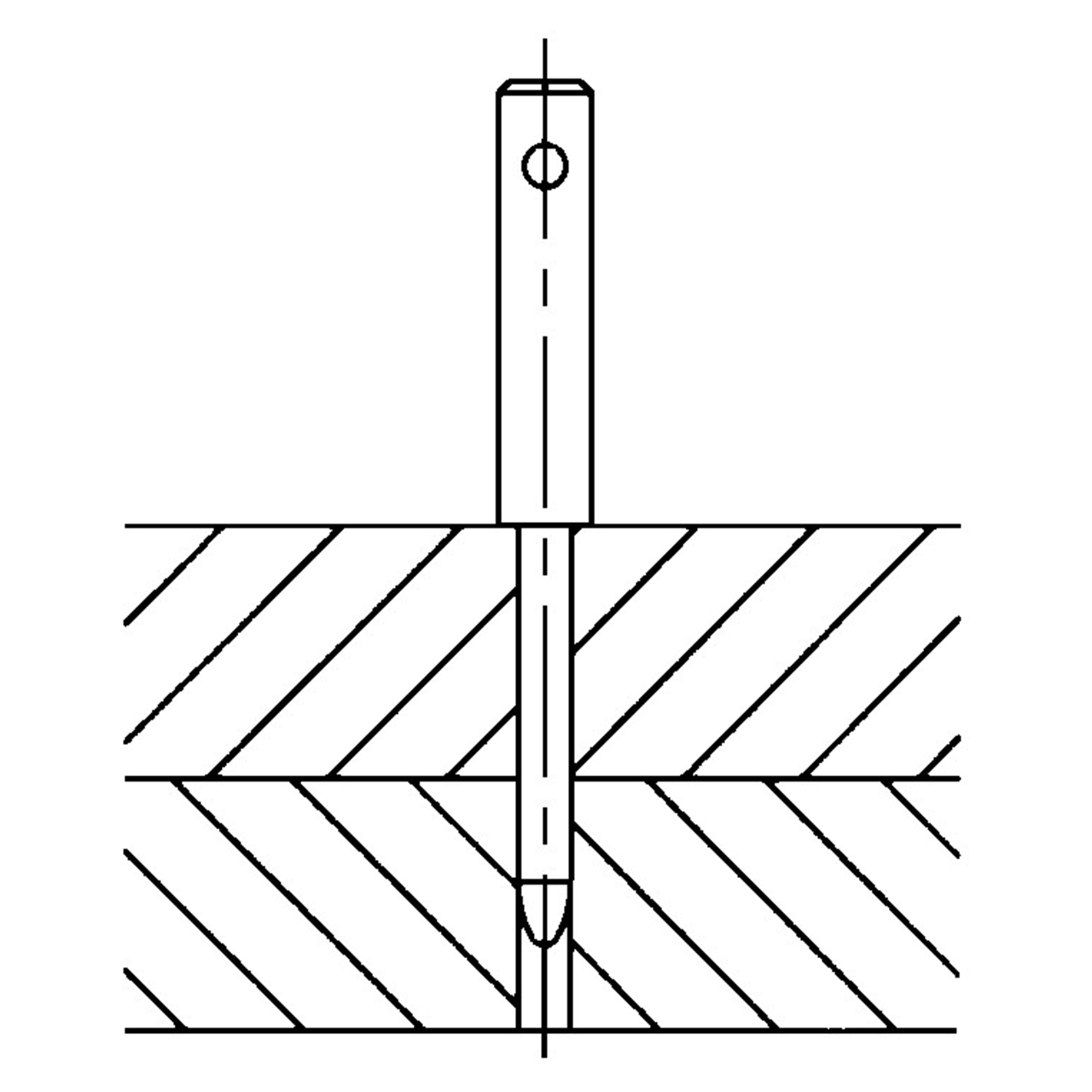

Shoulder Pins can be used for accurately aligning two plates

Optional Cable

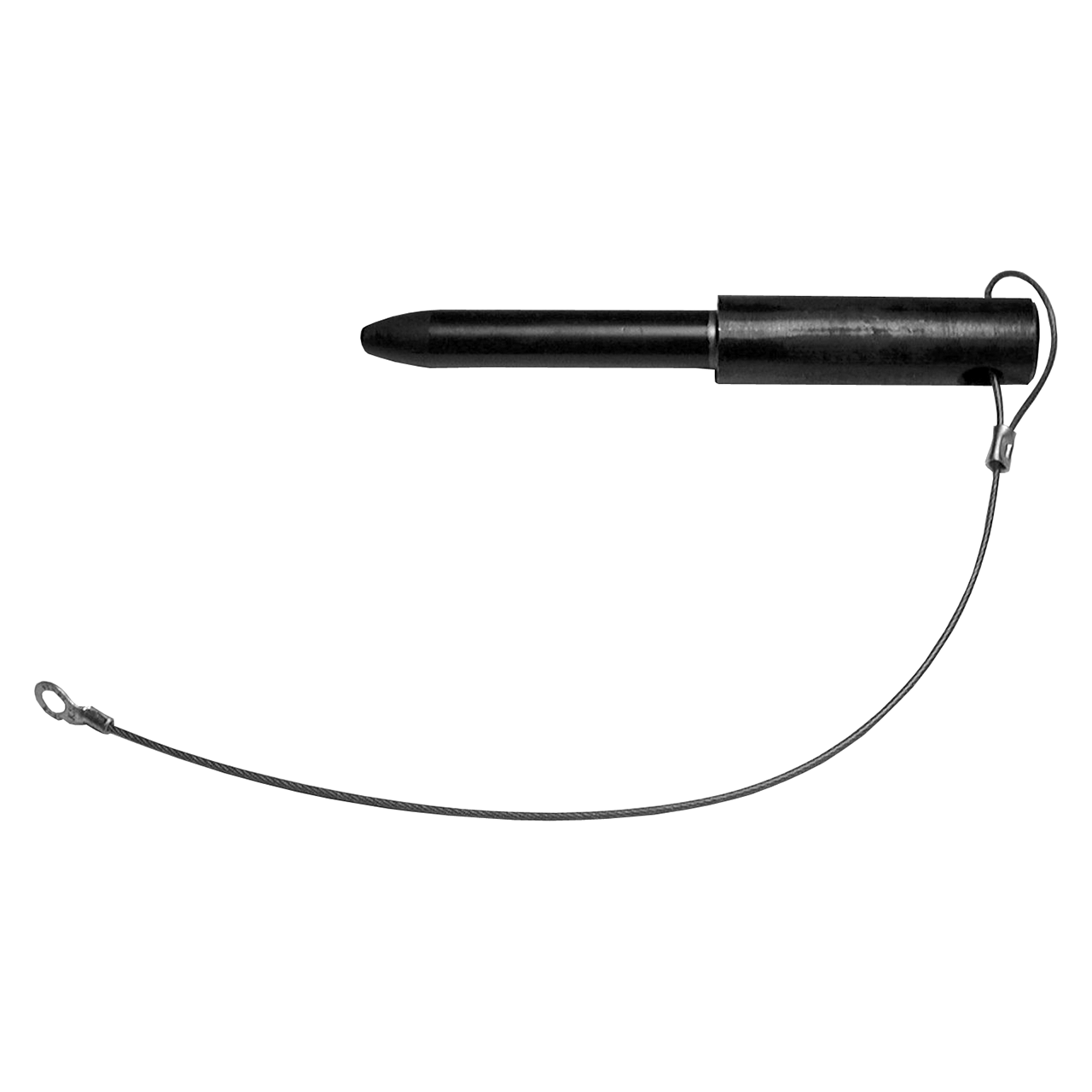

To order Shoulder Pins with a standard cable assembly attached, add "-C" to the part number, e.g. CL-7-SP-C (#2 cable size, 10-12" long, with a terminal at the free end for a #10 or M5 attachment screw).

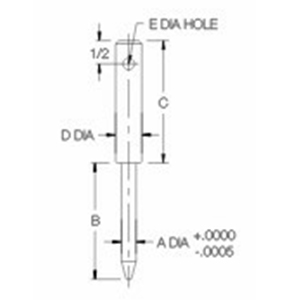

Material

Parts Specification
