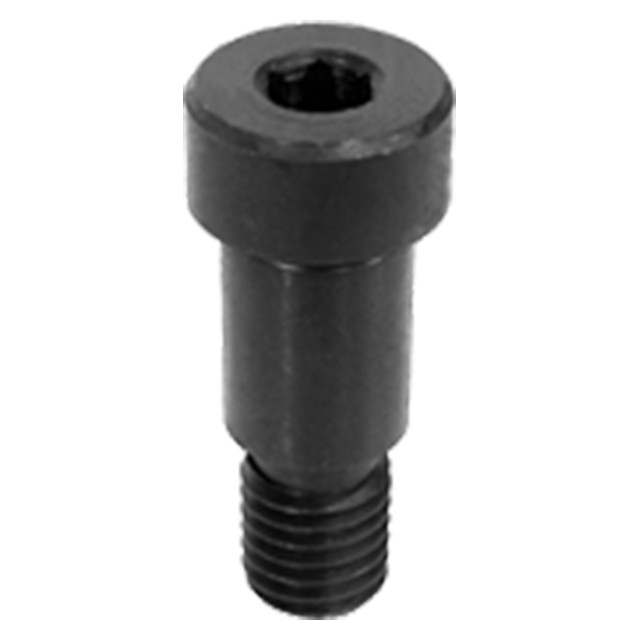

Precision close-tolerance Shoulder Screw. The shoulder diameter is ground to a closer tolerance than ordinary stripper bolts, for better bearing action. Shoulder length is held to a plus tolerance to allow a nominal-size plate to swing freely underneath the head.
| Material | Heat Treat | Finish | DFARS | RoHS |
| Alloy Steel | Heat Treated Rc 32-43 | Black Oxide | Metric | Yes |
| Shoulder Diameter (mm) | A Thread | Thread Pitch (mm) | B (mm) | D (mm) | E (mm) | F Diameter (mm) | G (mm) |
| 10mm | M8 | 1.25mm | 20mm | 7mm | 13mm | 16mm | 5mm |
