Clamping Studs
High-strength general-purpose Clamping Stud, for use with a T Nut, or for installation directly into a fixture plate. Available in steel with thread sizes 1/4-20 to 1"-8 (M6 to M20 in metric), and in stainless steel with thread sizes 3/8-16 to 5/8-11, each in a wide choice of lengths. For smaller-diameter stainless steel studs, see Fixture Studs or Fully Threaded Studs. Made in USA.
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamping Stud | 1144 steel, 115,000 psi min tensile strength, 100,000 psi min yield strength | - | Black Oxide | Yes | Yes |
Parts Specification

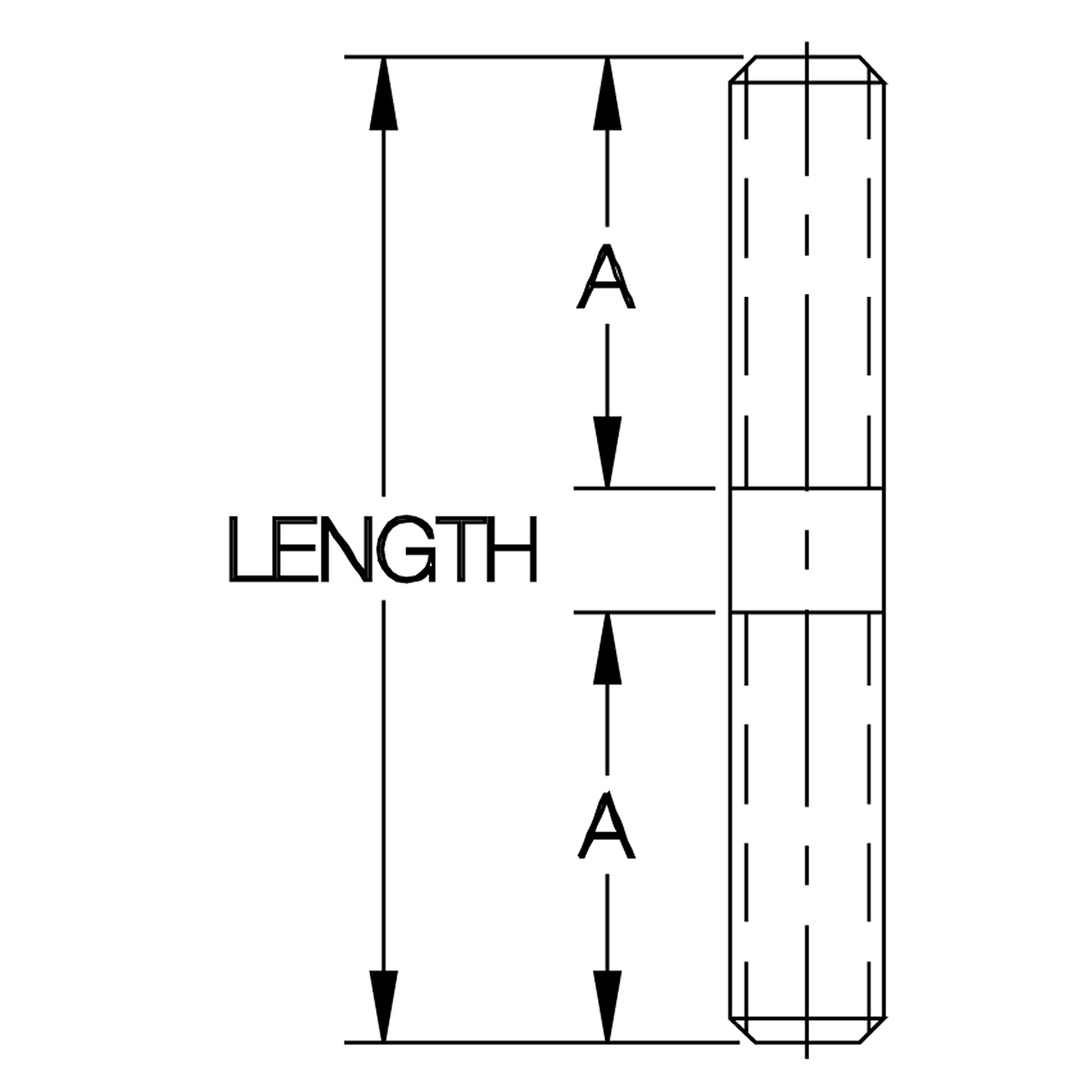

| Thread Size | Thread Pitch (mm) | Length (mm) | A ±1.6 (mm) |
| M10 | 1.5mm | 50mm | 20mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Pitch (Inch):
1/16"
Pitch (Decimal Inch):
0.0591"
Pitch (mm):
1.50mm
Thread:
M10
