Adjustable Handle
Adjustable clamping handle that can be reset to any angle. Ideal for clamping in a confined space, or when a specific handle position is desired. Rugged spring-loaded spline mechanism.

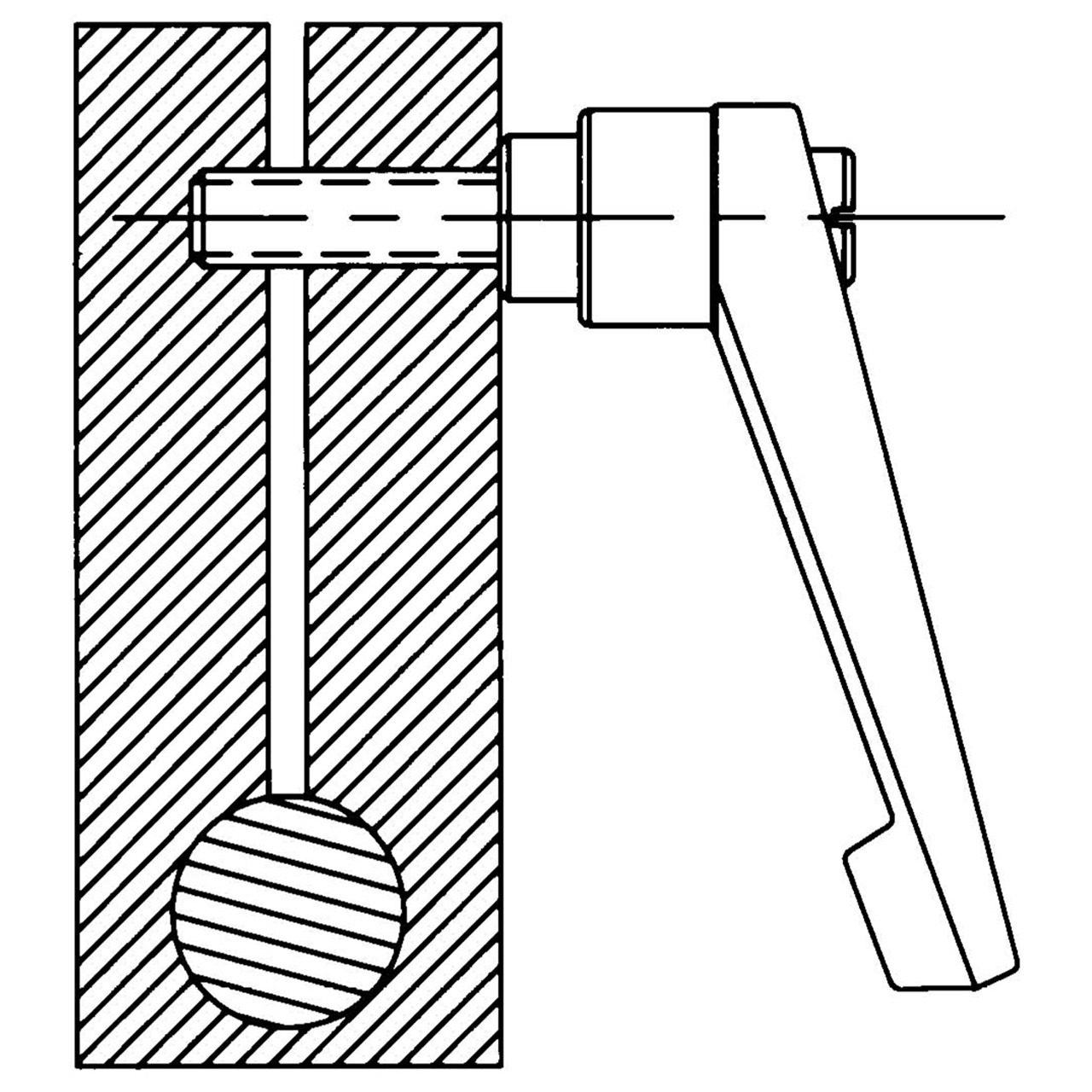

Application Information
Operation
Lift handle to disengage serrations, rotate to desired position, then release handle to automatically re-engage spline.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Handle | Zinc Die Casting | - | Enamel Paint | Yes | Yes |
| Body,Screw & Spring | Mild Steel | - | Black Oxide Finish | Yes | Yes |

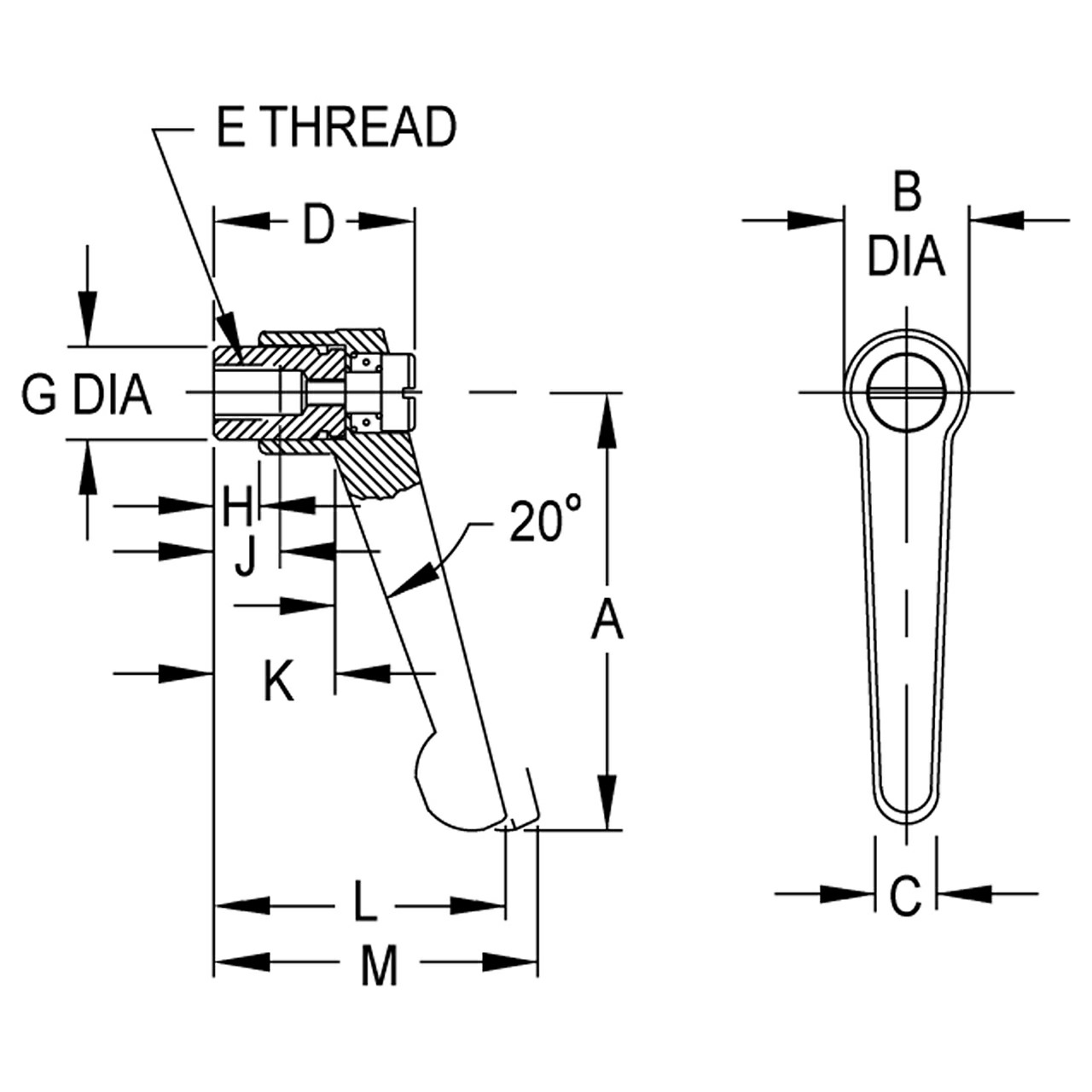

Parts Specification
| Size | E Thread | Thread Pitch (mm) | J (mm) |
| 4 | M12 | 1.75mm | 16mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Pitch (Inch):
1/16"
Pitch (Decimal Inch):
0.0689"
Pitch (mm):
1.75mm
Thread:
M12
