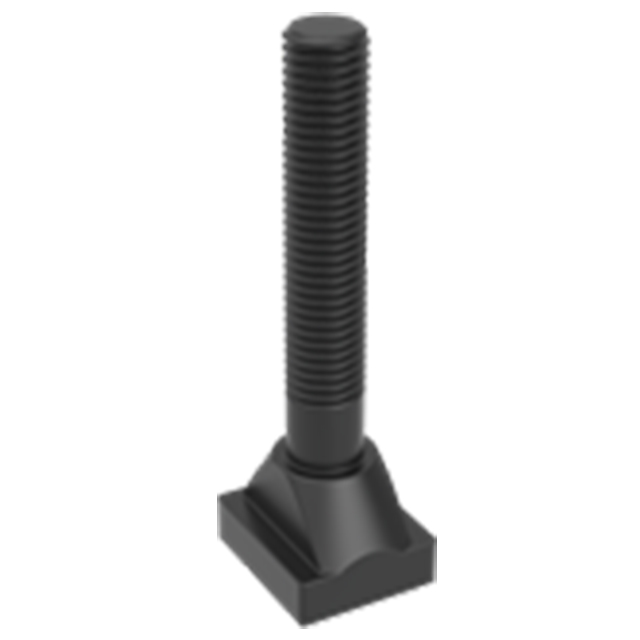

High-quality high-strength forged clamping bolt for T-slotted machine tables. Fully machined flats where the T-Bolt contacts the T-Slot. Provides full bearing with the slot to prevent twisting or jamming. One-piece design can provide a larger diameter stud compared to a T-Nut & Stud combination.
| Material | Heat Treat | Finish |
| Forged Medium Carbon Steel | Grade 8.8, Rc 24-30 | Black Oxide |
| A Slot Width (mm) | B Thread (mm) | C (mm) | D X E (mm) | F Length (mm) | G (mm) |
| 14mm | M12 | 8mm | 22 x 22 | 65mm | 40mm |
