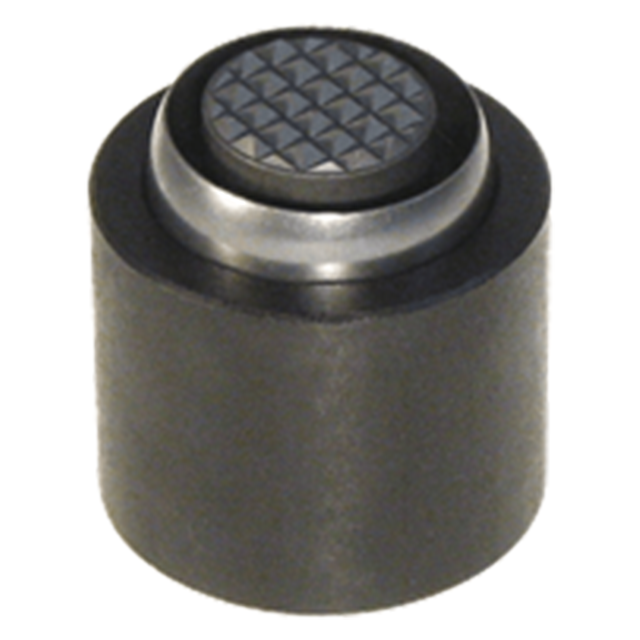

Gripper Swivel Pads
Rest pad with a built-in swivel ball to hold a Round Gripper. This swivel ball, held by a retaining ring, is removable to allow installing any of the nine different Round Gripper types. Gripper Swivel Pads include a screw for fastening the gripper. This screw also serves as a positive stop to prevent the ball from swiveling too far.Gripper Swivel Pads can be surface mounted or installed in a counterbored hole. Made in USA.

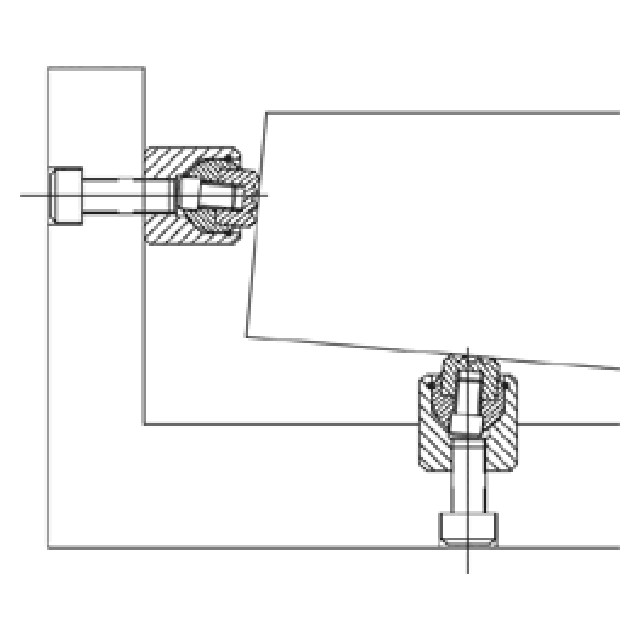

Application Information
Gripper Swivel Pads can be surface mounted or installed in a counterbored hole.

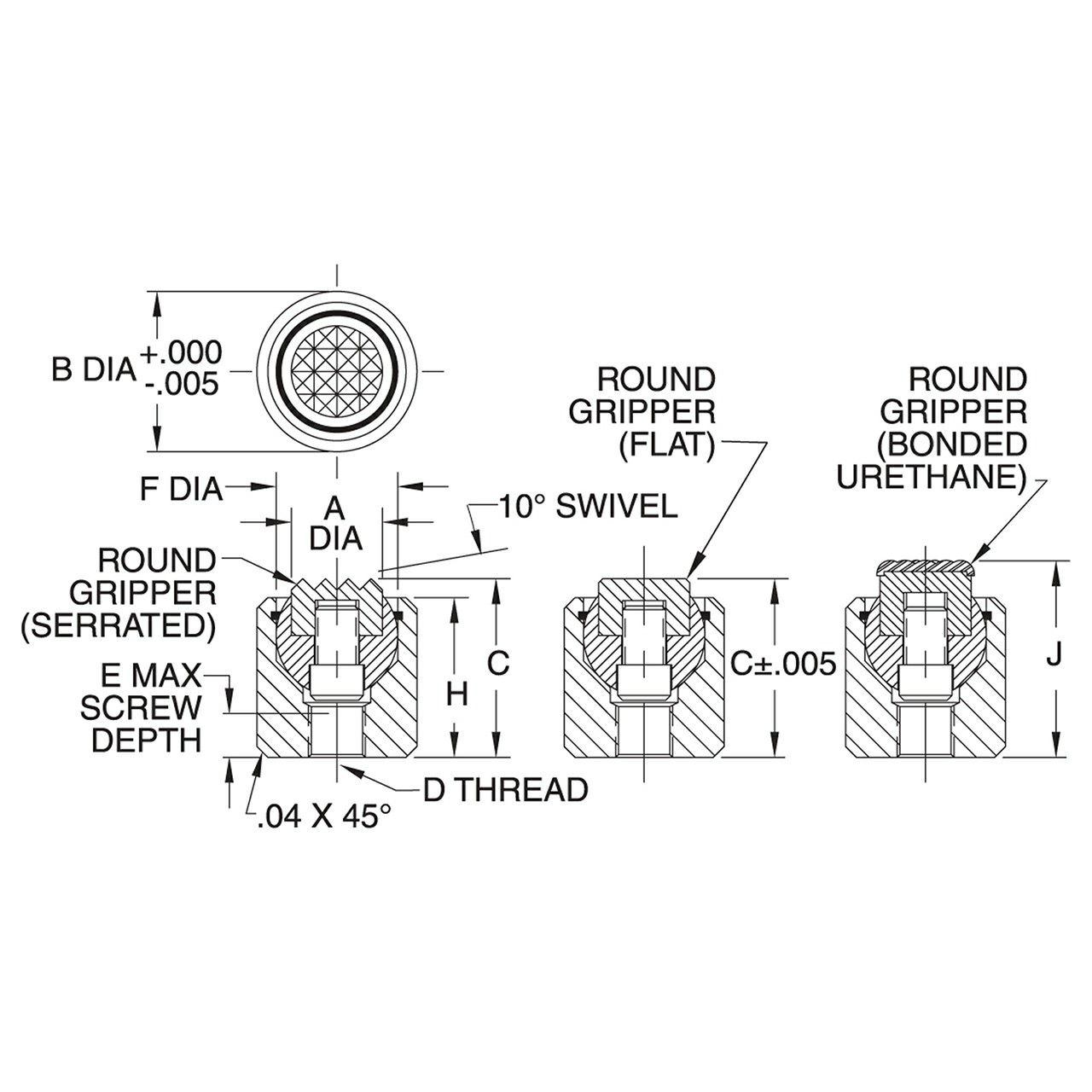

Parts Specification
| A Diameter (mm) | B Diameter (mm) | C (mm) | D Thread | Thread Pitch (mm) | E (mm) | F Ball Diameter (mm) | H (mm) | J (mm) | Matching Round Gripper Size |
| 12mm | 19mm | 24mm | M8 | 1.25mm | 8.5mm | 15mm | 20mm | 26mm | CLM-12-RGx |
