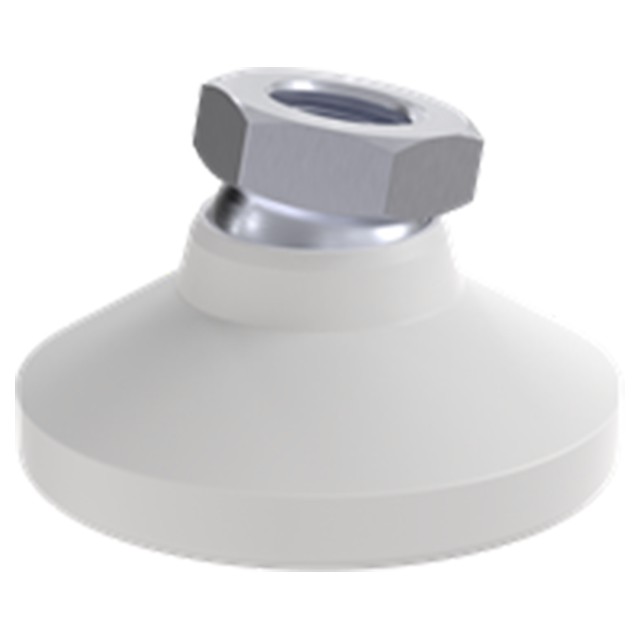

Carr Lane CLM-12-LFN | M12 Thread x 1.75mm Pitch Leveling Feet

$13.63
Ships:
From Manufacturer
Brand:
Carr Lane
Thread Size:
M12
Ships:
From Manufacturer
SKU:
50020248
UPC:
Weight:
0.12 LBS
Shipping:
Calculated at Checkout

Leveling Feet

High-quality, heavy-duty leveling foot with a large-diameter Delrin pad. Large swivel ball provides a 20° total swivel angle. The Delrin pad prevents marring, but has a lower load capacity than a steel pad. Made in USA.

Design Considerations & Safety Precautions

Rated load capacity represents safe static load with the standard-length stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Leveling feet are rated with the same stud length as Stud Leveling Feet (2" for most sizes). Load capacity will drop significantly with longer studs.

Material

ItemMaterialHeat TreatFinishDFARSRoHS
Body1215 SteelCarburized-HardenedYellow Chromate or Clear Zinc PlatedYesYes
PadWhite Delrin 500--YesYes

Parts Specification

A ThreadThread Pitch (mm)B (mm)C Diameter (mm)D (mm)E (mm)F (mm)Load Rating (kg)
M121.75mm19mm47.5mm6.5mm28.5mm12.5mm320 kg
