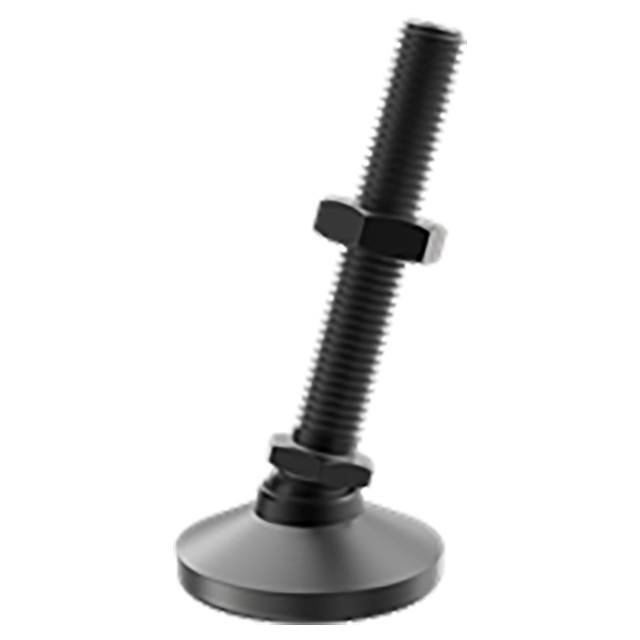

Stud Leveling Feet-Steel, Black Oxide Finish
High-quality, heavy-duty leveling foot with a large-diameter pad and integral stud. Stud and swivel ball are one solid piece. Large swivel ball provides high load capacity with a 20° total swivel angle. Made in USA.
Application Information
A Stud Leveling Foot can be used as a clamp rest for a Tapped-Heel Clamp Strap
Design Considerations & Safety Precautions
Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Load capacity will drop significantly with longer studs.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Pad | 1215 Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread | B (Inch) | C Diameter (Inch) | D (Inch) | E (Inch) | F (Inch) | Load Rating (lbs) |
| #10-32 | 3/8" | 3/4" | 7/64" | 17/32" | 2" | 200 lbs |
