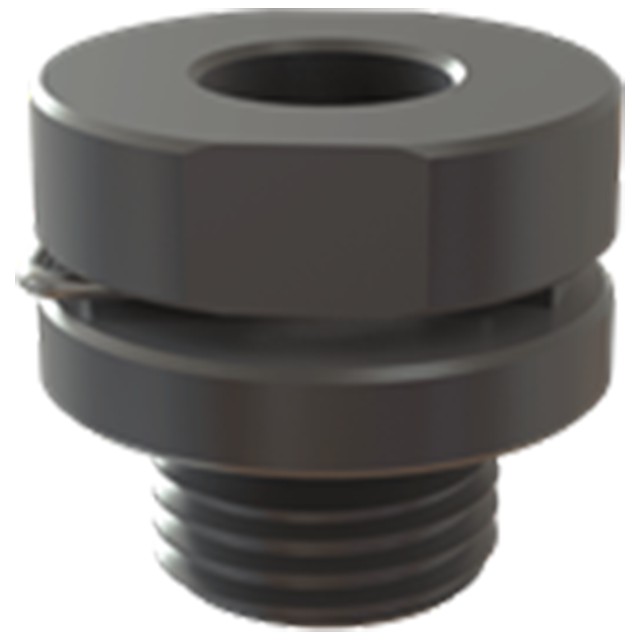

Carr Lane CLM-12-TLPB-OS | 12mm Diameter x 1.5mm Thread Pitch Locking-Pin Bushing

Threaded Locking-Pin Bushings

Locking-Pin Bushings are equipped with a retainer spring clip on the inside diameter, for use with all types of locking/captive pins and locating screws. The threaded version has an externally threaded shank, for installation in a tapped hole. This threaded design provides less locational accuracy, but is handy when captive clamping pins are used in non-locating applications. This version has an oversize ID (.040" larger than nominal size) as standard. Made in USA.

Replacement Spring Clips

Every Locking-Pin Bushing includes a spring clip, to retain its captive L Pin, T Pin, or Clamping Pin. To remove the pin from the bushing, the spring clip must first be removed.

Material

Parts Specification
