Gripper Swivel Contact Bolts
Threaded contact bolt with a built-in swivel ball to hold a Round Gripper. This swivel ball, held by a retaining ring, is removable to allow installing any of the nine different Round Gripper types. Gripper Swivel Contact Bolts include a screw for fastening the gripper. This screw also serves as a positive stop to prevent the ball from swiveling too far.Gripper Swivel Contact Bolts can be used as contact bolts, or as supports. For smaller sizes, see Gripper Swivel Contact Bolts (Mini). Made in USA.
Application Information

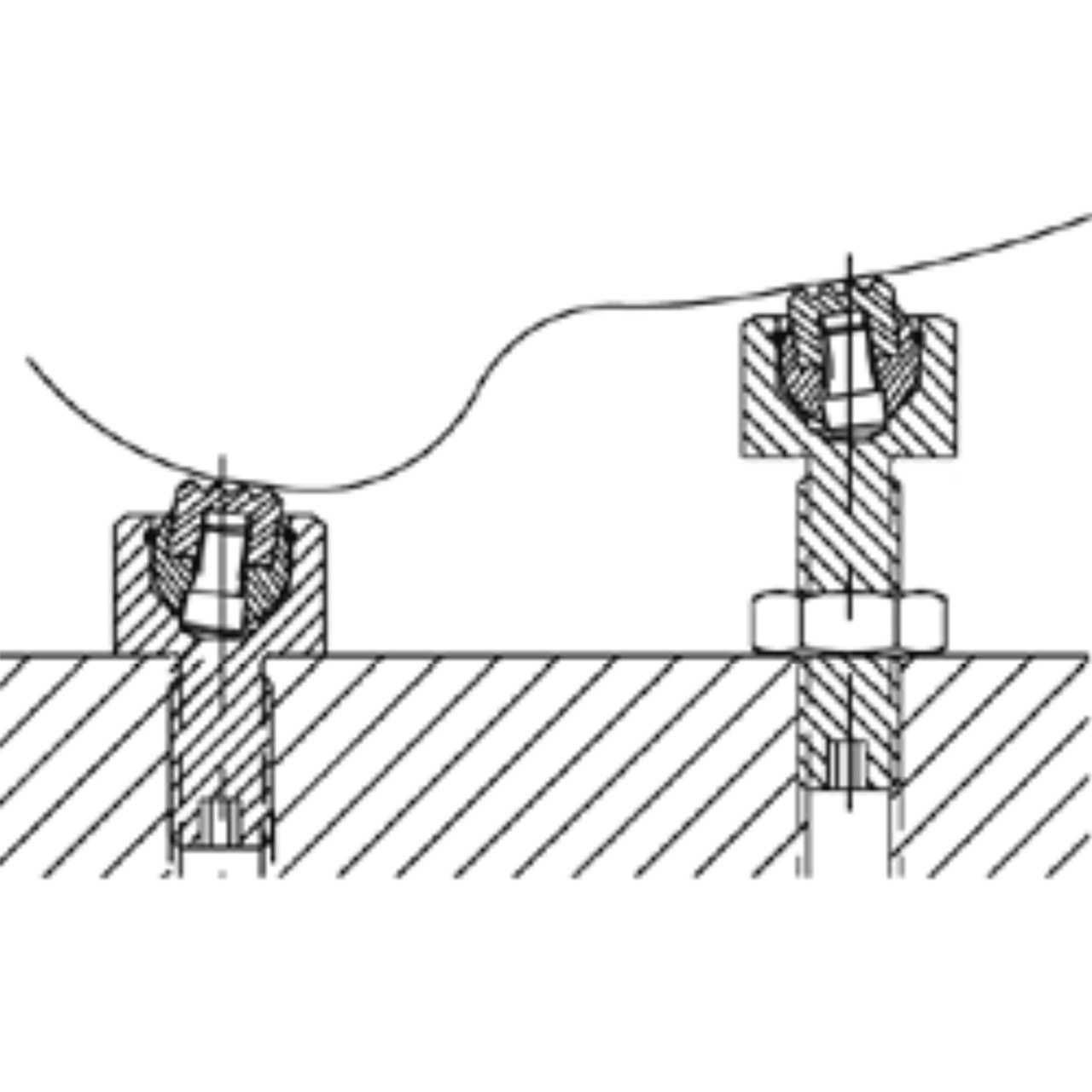

Gripper Swivel Contact Bolts are ideal as either fixed or adjustable supports under workpieces with curved or sloped surfaces.
Gripper Swivel Contact Bolts can also be used as screw clamps by turning them with a hex wrench.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body and Gripper Screw | Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Swivel Ball | 440C Stainless Steel | Heat Treated | - | Yes | Yes |
| O-ring | Ruber | - | - | Yes | Yes |
| Round Gripper | See catalog information for each specific gripper type | - | - | Yes | Yes |
Parts Specification

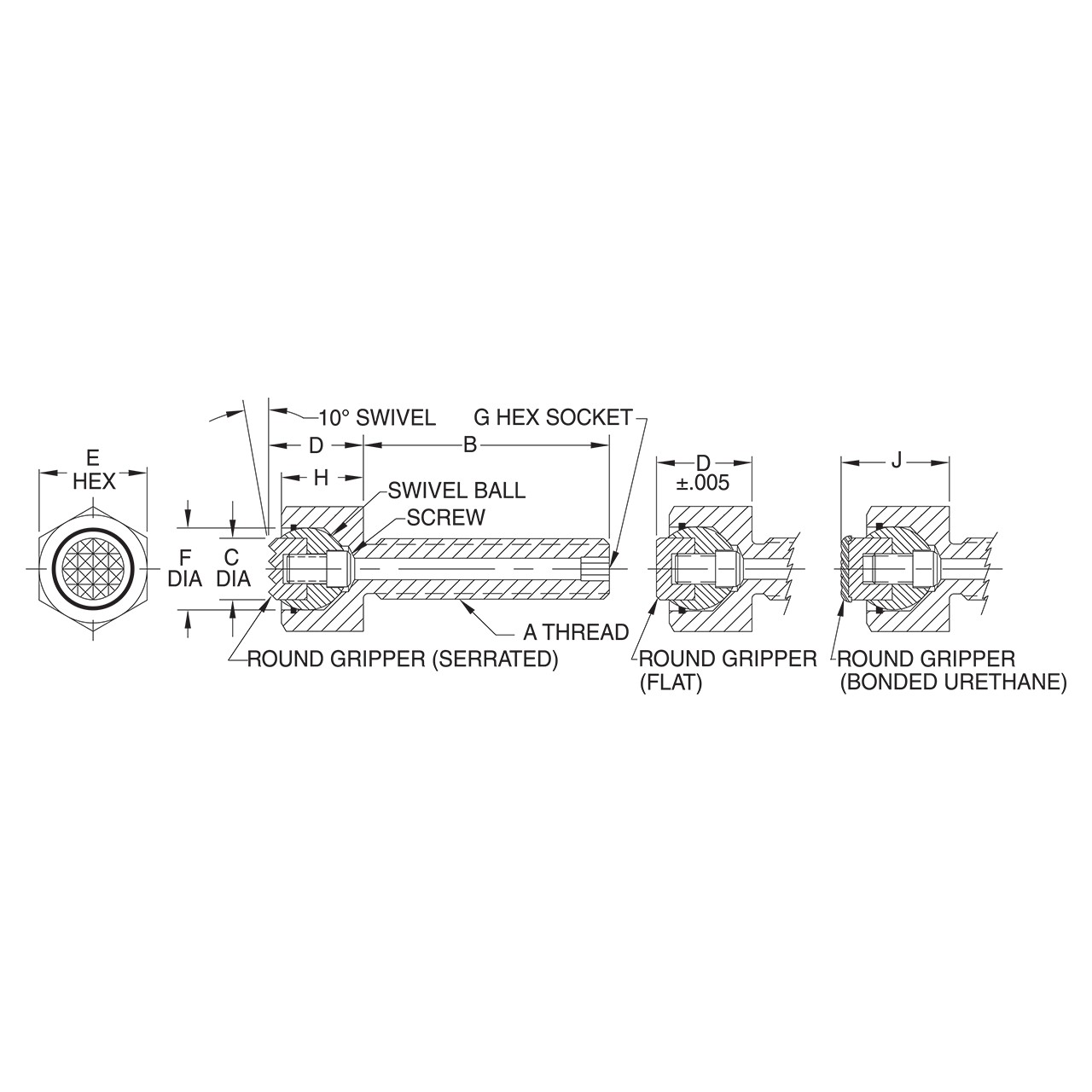

| A Thread | Thread Pitch (mm) | B (mm) | C Diameter (mm) | D (mm) | E (mm) | F Diameter (mm) | G (mm) | H (mm) | J (mm) |
| M12 | 1.75 mm | 20 mm | 12 mm | 19 mm | 19 mm | 15 mm | 5 mm | 15 mm | 21 mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
