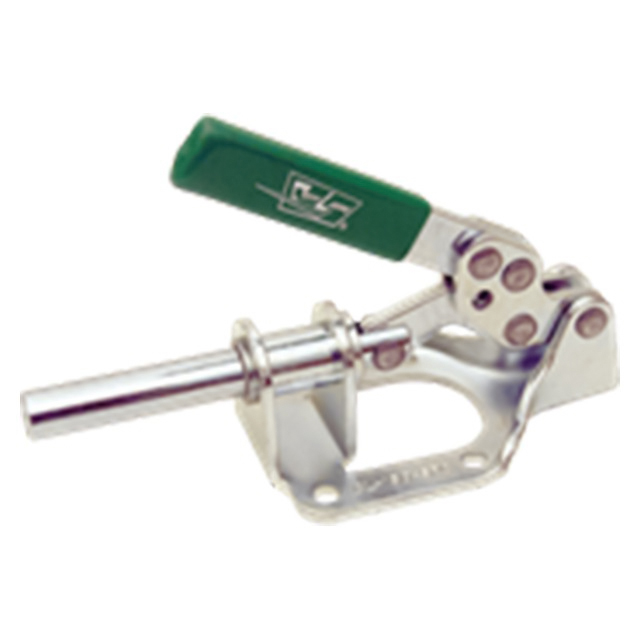

CL-150-SPC
Tapped Plunger
Medium-size plunger clamp. Locks in extended or retracted position. 1-1/4" plunger travel. Plunger is tapped to accept any 5/16-18 spindle (M8 in metric). 300 lbs. holding capacity.
Clamped Position (Push)
Open Position (Push)
Clamped Position (Pull)
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1215, 1008, 1010, and/or 1018 steel | - | Zinc Plated Clear Chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
| Description | Tapped Hole In Plunger | Thread Pitch (mm) | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Tapped Plunger, Flanged Base | M8 | 1.25mm | 300lbs. | 0.7lbs. |
