Adjustable Locating Buttons
Support screw with fine threads for precise adjustment. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | - | Black Oxide | Yes | Yes |

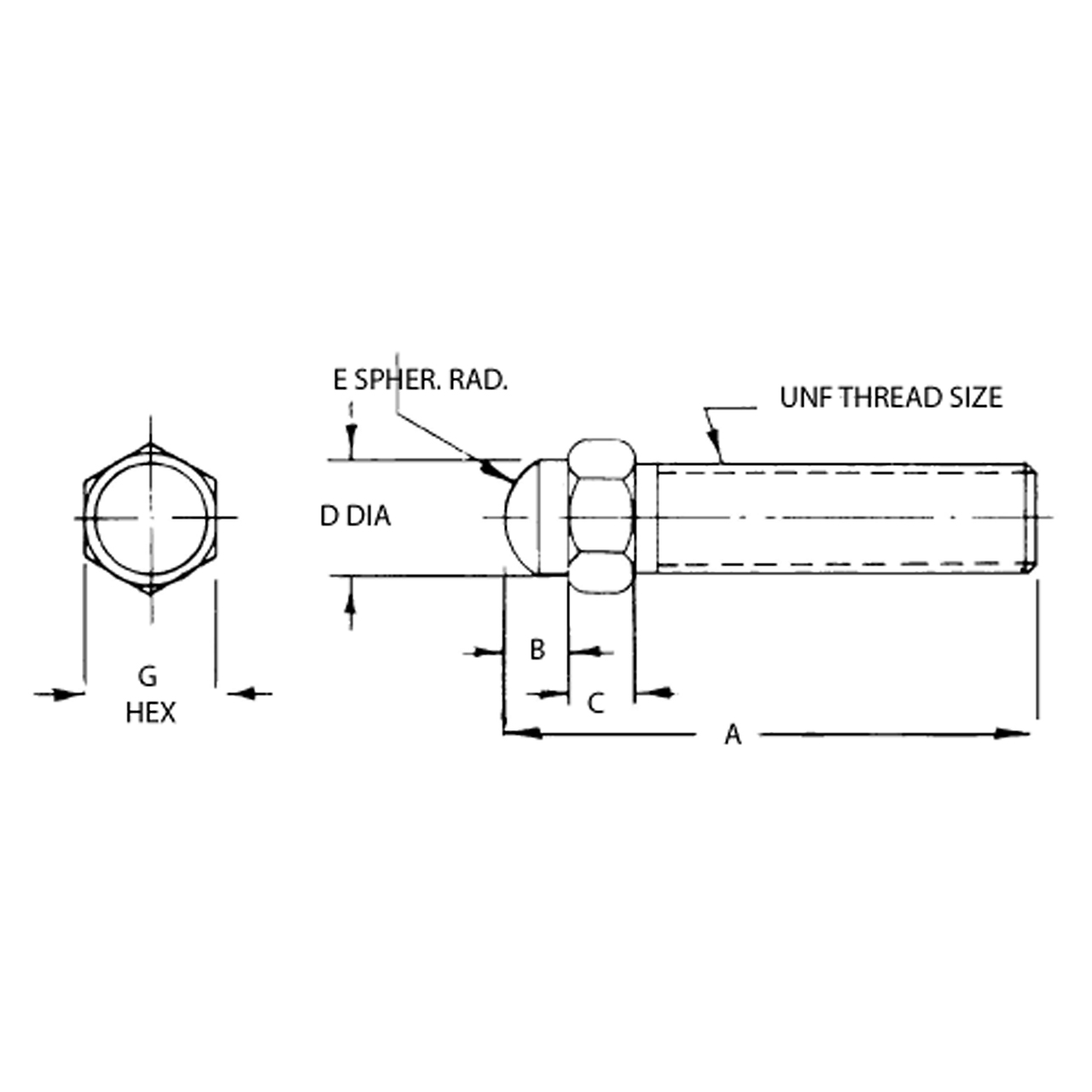

Parts Specification
| Thread Size | Thread Pitch (mm) | A (mm) | B (mm) | C (mm) | D Diameter (mm) | E (mm) | G (mm) |
| M16 | 2mm | 75mm | 10mm | 10mm | 16mm | 10mm | 24mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
