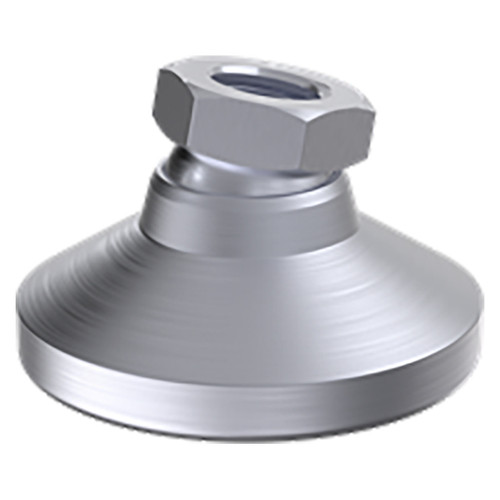

High-quality, heavy-duty leveling foot with a large-diameter pad. Large swivel ball provides high load capacity with a 20° total swivel angle. Available with tapped-hole sizes from #10-32 to 1"-8 (M6 to M20 in metric). Made in USA.
Design Considerations & Safety Precautions
Rated load capacity represents safe static load with standard stud length at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Leveling feet are rated with the same stud length as Stud Leveling Feet (2" for most sizes). Load capacity will drop significantly with longer studs.
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Body | 1215 Steel | Carburized-Hardened | YELLOW CHROMATE OR CLEAR ZINC PLATED | ✔ | ✔ |
| Pad | 1215 Steel | - | YELLOW CHROMATE OR CLEAR ZINC PLATED | ✔ | ✔ |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C Dia (mm) | D (mm) | E (mm) | F (mm) | Load Rating (kg) |
| M16 | 2 mm | 24 mm | 63.5 mm | 8 mm | 32 mm | 12.5 mm | 3300 kg |
